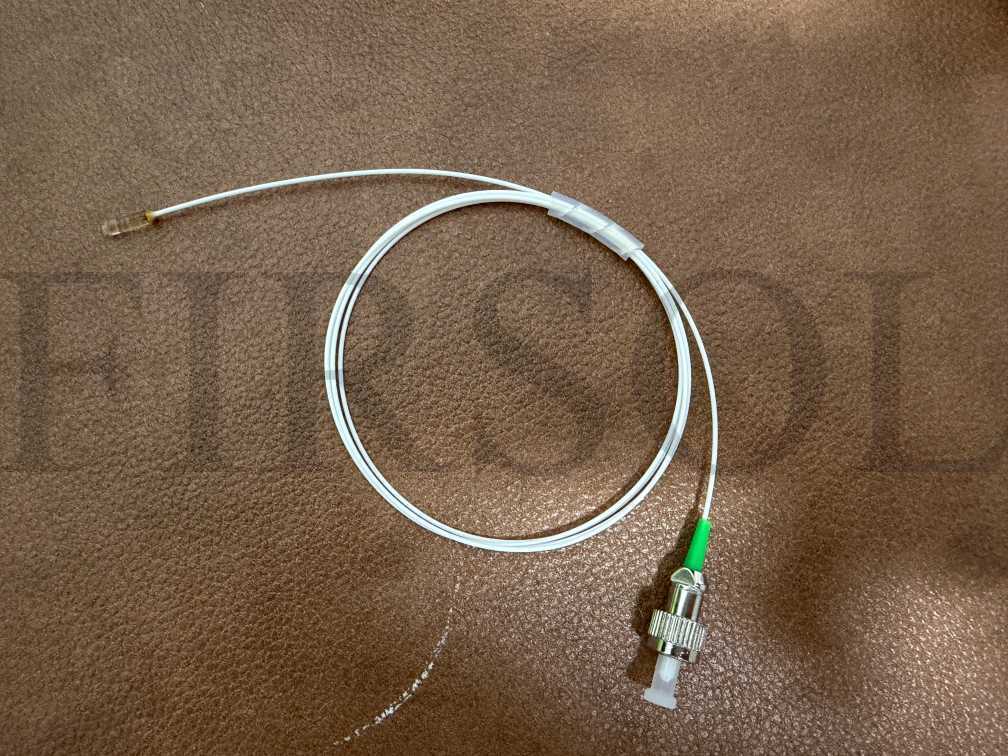

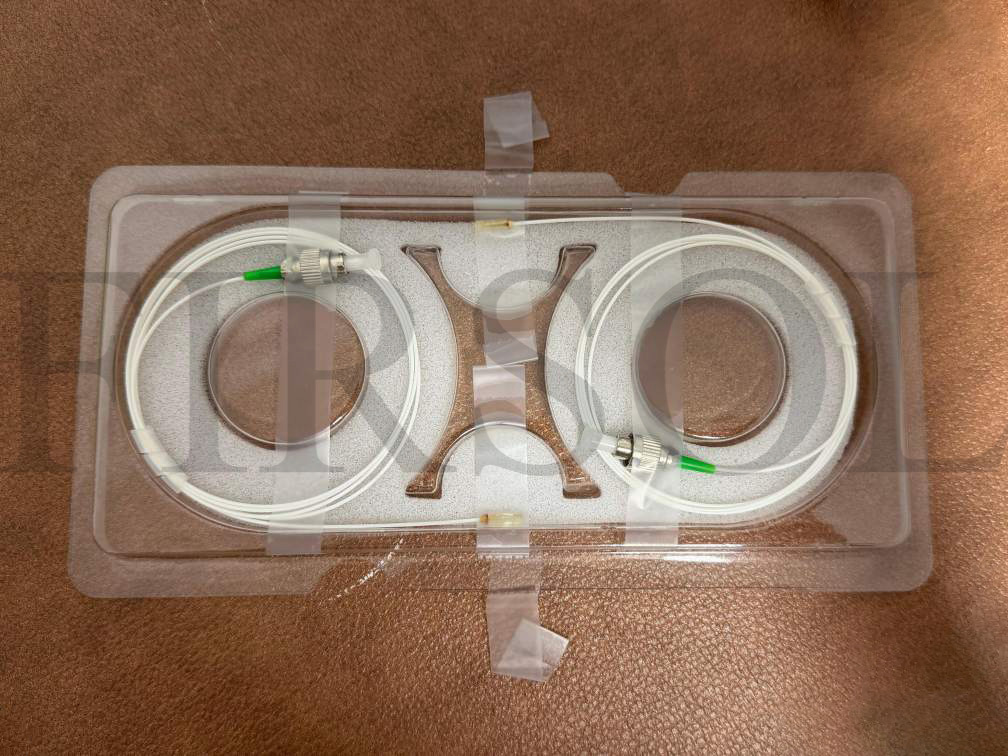

1550nm Single Mode C-Lens Fiber Collimator
P/N: FIR-1550-SM-CL-FC|SKU: 10064
Unit Price
MOQ: 1 pcs
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1550nm Single Mode C-Lens Fiber Collimator
The 1550nm Single Mode C-Lens Fiber Collimator is designed for efficient beam collimation in fiber optic systems operating in the C-band. Utilizing precision-aligned C-lens technology, this device delivers a stable and low-divergence output beam with high coupling efficiency and minimal insertion loss.
Optimized for SMF-28e fiber, it ensures excellent optical performance with low polarization-dependent loss and high return loss. The compact package and robust structure make it suitable for integration into optical communication systems, laser modules, and fiber optic sensing applications.
Specifications
Parameter | Unit | Value |
|---|---|---|
Center Wavelength | nm | 1550 |
Operating Wavelength Range | nm | ±30 |
Working Distance | mm | 5/50/100 |
Beam Diameter | mm | ≤0.6 |
Insertion Loss (Max.) | dB | 0.4 |
Return Loss (Min.) | dB | 50 |
Polarization Dependent Loss | dB | ≤0.2 |
Max Optical Power (CW) | W | 0.5/1/5/10 |
Fiber Type | - | SMF-28e |
Tensile Load (Max.) | N | 5 |
Package Dimensions | mm | Φ3.2 x L10 (Gold-Plated Tube), Φ2.8 x L9 (Glass Tube) |
Operating Temperature | °C | -5 to +70 |
Storage Temperature | °C | -40 to +85 |
Notes: Tested at 25 °C. Data exclude connectors. Adding connectors will increase insertion loss by approximately 0.3 dB, reduce return loss by 5 dB.
