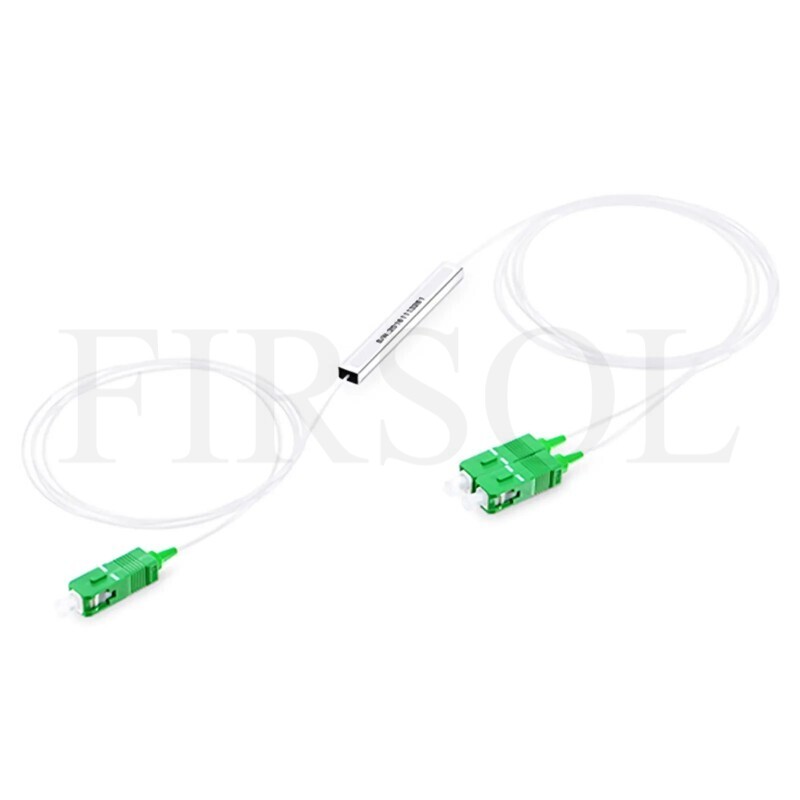

1x2 Blockless PLC Splitter
P/N: FIR-12-B-PLCS|SKU: 11221
Total Price
$11.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1x2 Blockless PLC Splitter, G.657.A1 Single Mode Fiber Splitter
The Firsol 1x2 Blockless PLC Splitter is a compact passive optical component designed to divide one input optical signal into two output channels with low loss and consistent performance. Manufactured using silica-based planar lightwave circuit technology, it operates across a broad wavelength range of 1260–1650 nm and features low insertion loss of ≤4.0 dB, low PDL of ≤0.2 dB, and loss uniformity of ≤0.4 dB. The splitter uses bend-insensitive G.657.A1 fiber and supports optical power up to 500 mW. Its compact blockless package is ideal for FTTH, PON, CATV, telecommunications networks, and optical signal distribution systems. Custom fiber lengths and LC, SC, FC, or ST connector options with UPC or APC polish are available to meet different installation requirements.
Specifications
Parameter | Unit | Value |
|---|---|---|
Port | - | 1x2 |
Operating Wavelength Range | nm | 1260-1650 |
FIber Type | - | G.657.A1 |
Insertion Loss | dB | ≤4.0 |
Loss Uniformity | dB | ≤0.4 |
PDL | dB | ≤0.2 |
Return Loss | dB | ≥50 |
Directivity | dB | ≥55 |
Wavelength Dependent Loss | dB | ≤0.5 |
Temperature Stability | dB | ≤0.5 |
Max Power Handing | mW | 500 |
Package Dimensions | mm | 60 x 7 x 4 |
Operating Temperature | °C | -20 to +85 |
Storage Temperature | °C | -40 to +85 |
