8/12/24 Fibers MPO To MPO Fiber Adapter With Flange
P/N: FIR-8/12/24F-MPO-MPO-FA-WL|SKU: 10941
Total Price
$2.90 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
8/12/24 Fibers MPO To MPO Fiber Adapter With Flange
The 8/12/24-Fiber MPO to MPO Fiber Adapter with Flange is designed for high-density fiber optic interconnection in data centers, telecom networks, and structured cabling systems. It provides precise alignment for 8-fiber, 12-fiber, and 24-fiber MPO connectors, helping ensure stable optical performance in parallel fiber applications. The flanged housing allows secure panel mounting, making it suitable for fiber patch panels, cassettes, enclosures, and other high-density cabling installations.
Specifications
Compatible Connector | MTP®/MPO-8/12/24 | Adapter Port | Single |
Housing Color | Black | Housing Material | Plastic |
Insertion Loss | ≤0.2dB | Durability | 1000 Times |
Operating Temperature | -25°C to +70°C | Storage Temperature | -40°C to +85°C |

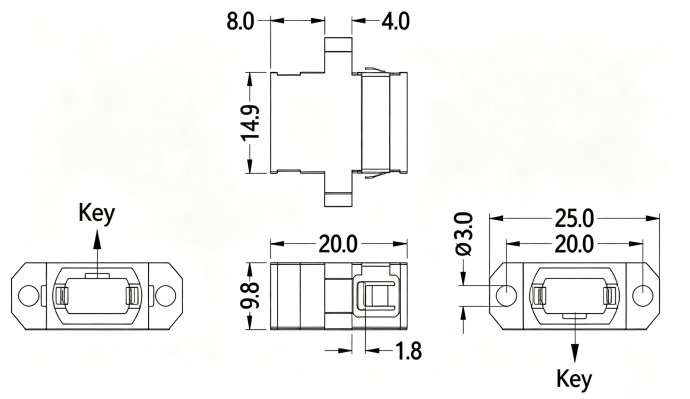

Dimensions
FAQ
- Q: Can I use this MPO adapter with both single mode and multimode cables?
- A: Yes, the adapter body is passive and can be used with single mode or multimode MPO cables as long as the connector type, fiber count, key orientation, polish type, and pin configuration are compatible.
- Q: Does this adapter change the polarity of the MPO cable?
- A: The adapter does not internally rewire the fibers, but its key orientation affects how the two MPO connectors are mated. Key-Up to Key-Down adapters are commonly used for Type A polarity, while Key-Up to Key-Up adapters are used for Type B polarity.
Questions & Answers
Can I use this adapter with APC-polished MTP®/MPO single mode cables?
Yes, this adapter can be used with APC-polished MTP®/MPO single mode cables when the connector polish type, key orientation, and pin configuration are matched. APC connectors should be mated with APC connectors only. For angled-polished MPO connectors, a Key-Up to Key-Down adapter is commonly used to ensure the angled end faces mate correctly.
Can I connect two male MPO connectors with this adapter?
No. MPO connectors require one pinned male connector and one unpinned female connector for proper alignment. Two male connectors may damage the guide pins, while two female connectors cannot provide accurate fiber alignment.
Is this adapter compatible with MTP® connectors?
Yes, it can be used with compatible MTP® and MPO connectors, provided the connector gender, polish type, fiber count, and key orientation are matched.
