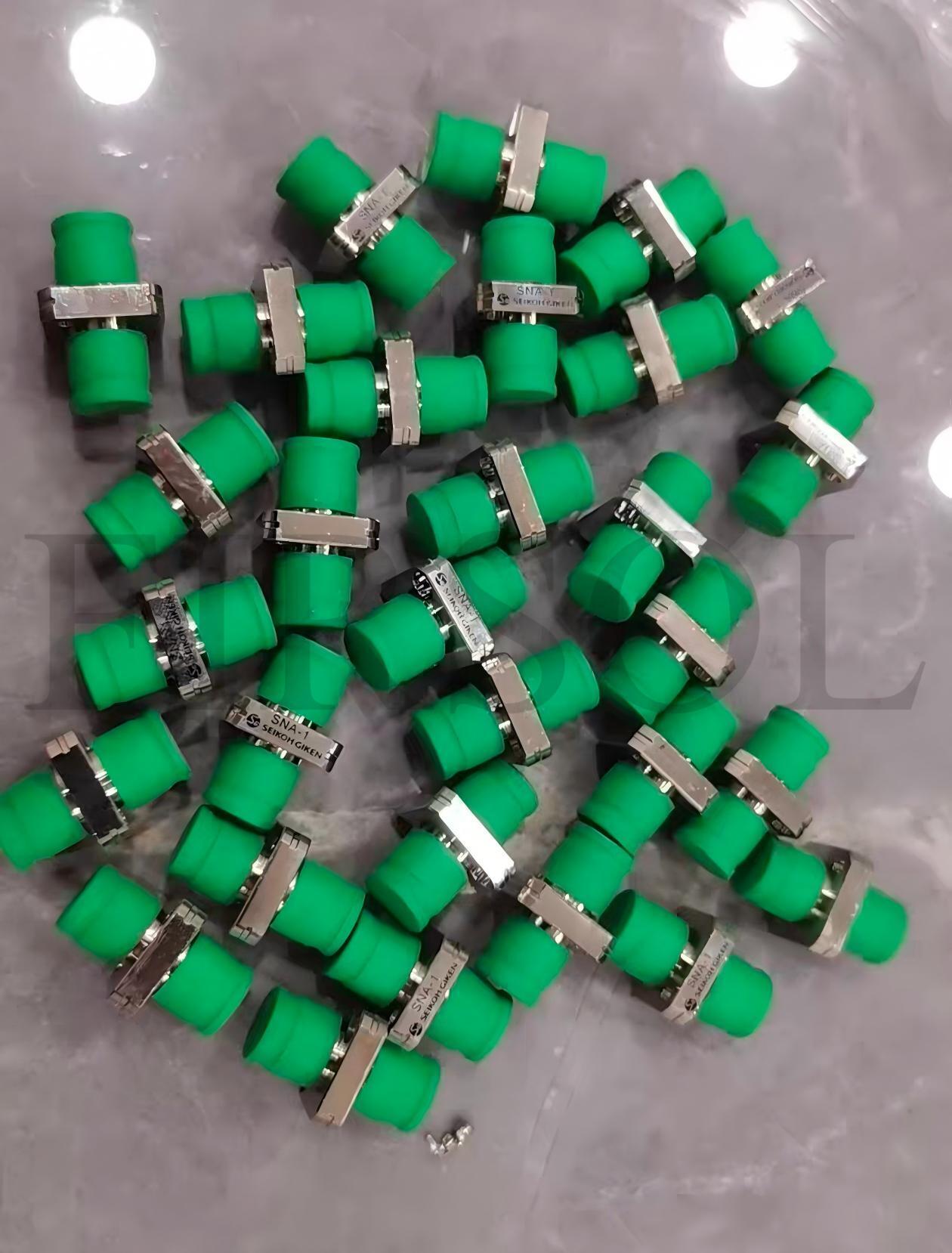

We initially ordered the wrong key type. After switching to the correct one, everything worked perfectly. Pay attention to Wide Key vs Narrow Key.
By S******h·Sep 25, 2025
Seikoh Giken SNA-1 FC/APC To FC/APC Fiber Adapter
P/N: FIR-SGSNA1-FCA-FCA-FA|SKU: 10055
Key Type
Unit Price
$14.00
MOQ: 1 pcs
Estimated Delivery Timeline
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Order Confirmed1 day
Production1–15 days
Shipping3–10 days
DeliveredWorldwide
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1-Year Warranty
30-Day Returns
30-Day Exchange

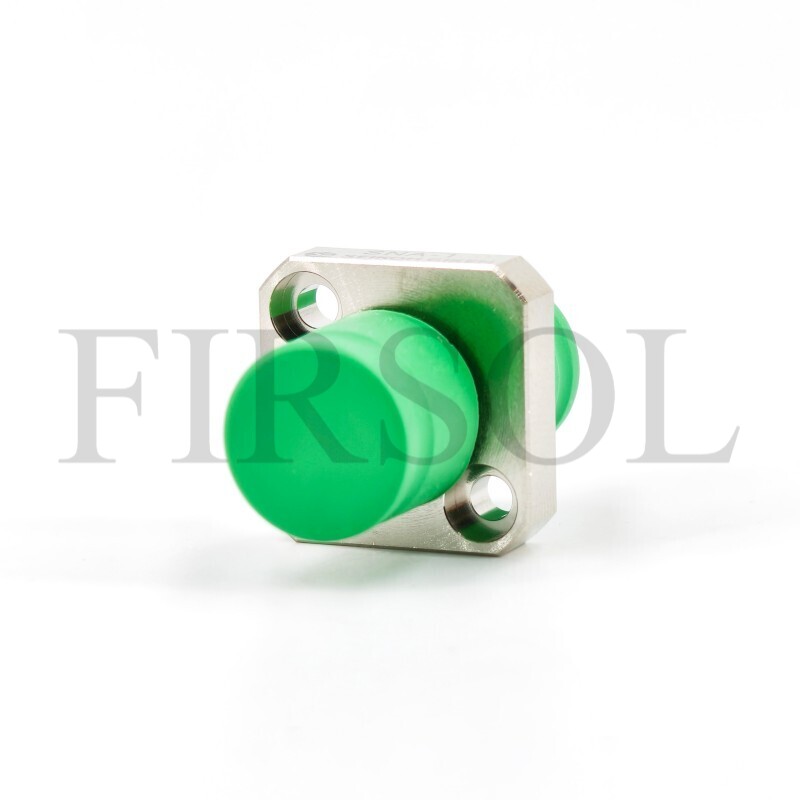

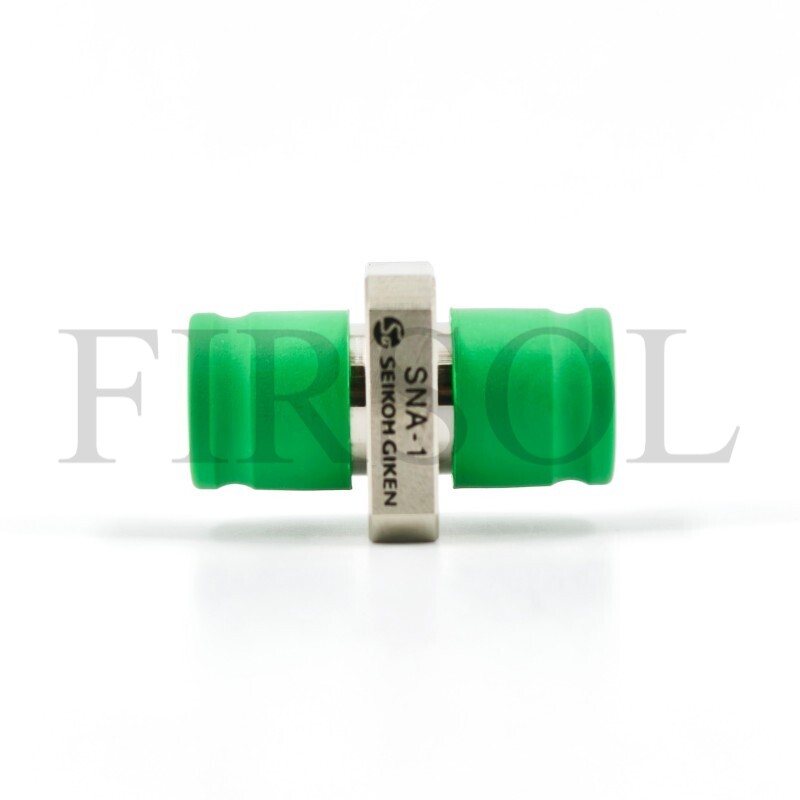

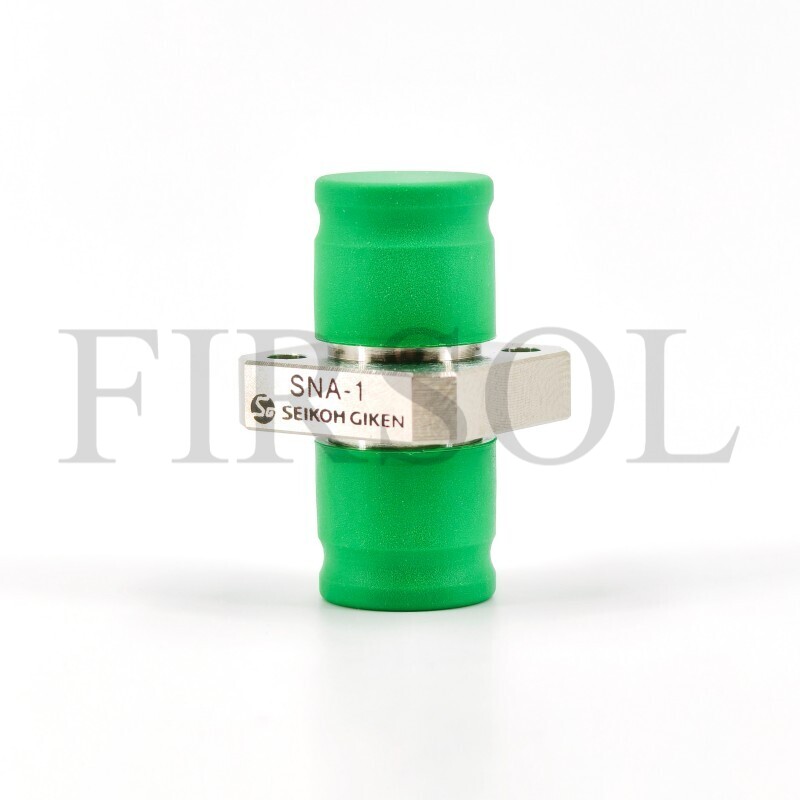

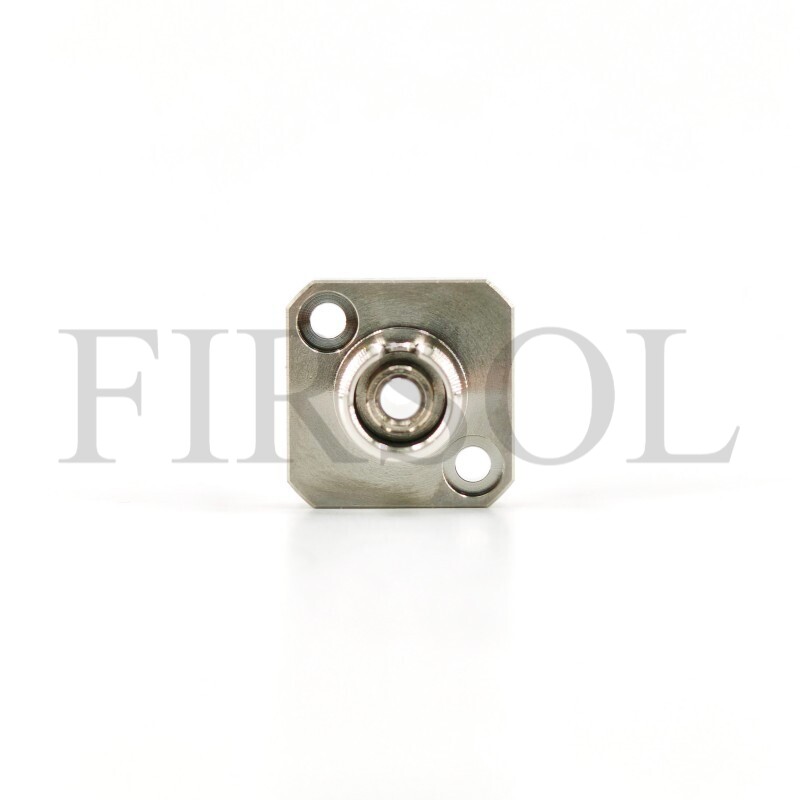

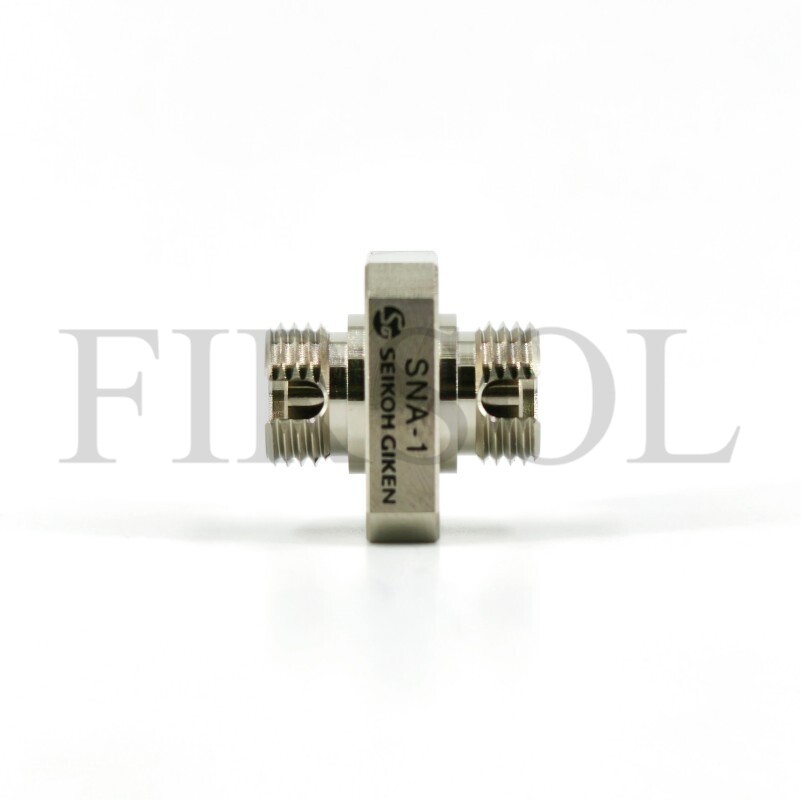

Seikoh Giken SNA-1 FC/APC To FC/APC Fiber Adapter
The Seikoh Giken SNA-1 FC/APC to FC/APC Fiber Adapter is a high-precision fiber optic adapter designed for low-loss and high-repeatability connections in demanding optical environments. Manufactured by Seikoh Giken, a globally recognized leader in fiber optic polishing and connectivity solutions, this adapter ensures excellent alignment accuracy and stable optical performance.
Featuring a robust metal housing and precision ceramic alignment sleeve, the SNA-1 adapter provides superior durability and consistent connection quality. It is ideal for single-mode fiber applications requiring low insertion loss and high return loss, especially in telecom networks, testing laboratories, and high-performance optical systems.
Specifications
Connector A | FC/APC | Connector B | FC/APC |
Fiber Mode | Single Mode | Body Style | Simplex |
Alignment Sleeve | Zirconia Ceramic | Housing Material | Brass (Nickel Plated) |
Insertion Loss | ≤0.2dB | Durability | 1000 Times |
Operating Temperature | -25°C to +70°C | Storage Temperature | -40°C to +85°C |
Dimensions
 |  |

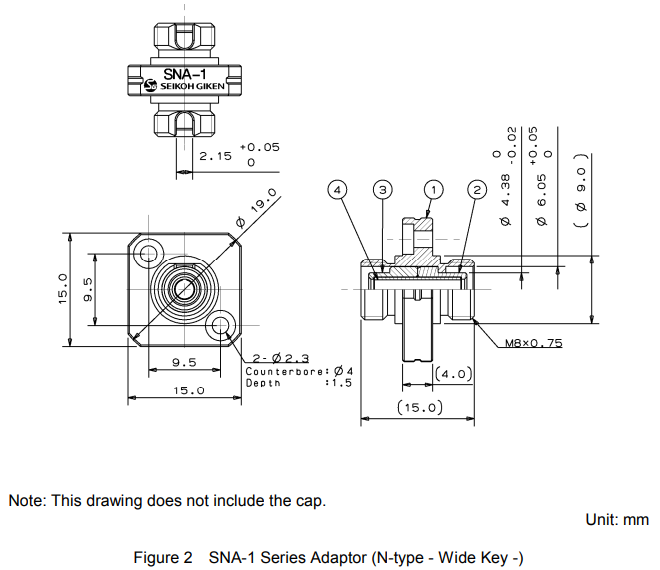

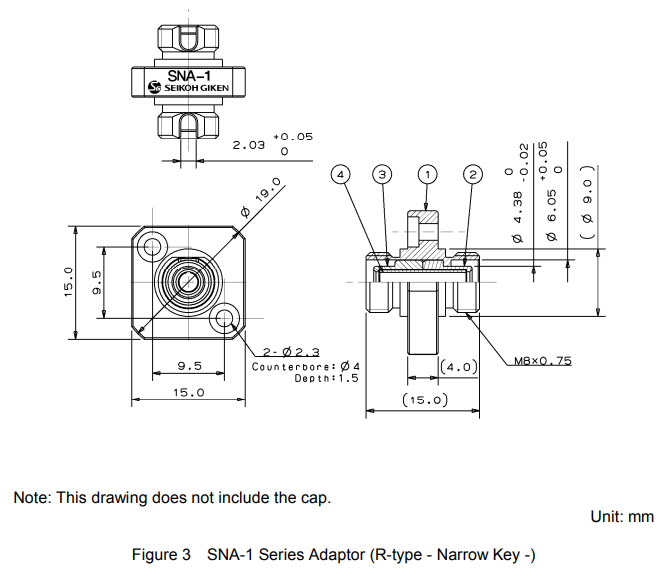

Seikoh Giken SNA-1 Wide Key Dimensions | Seikoh Giken SNA-1 Narrow Key Dimensions |
FAQ
- Q: What is the difference between Wide Key and Narrow Key?
- A: Wide Key (N-type) and Narrow Key (R-type) refer to the key width of the FC connector. They are not interchangeable, so please confirm your connector type before ordering.
- Q: Can this type of adapter achieve 0.05 dB insertion loss?
- A: According to Seikoh Giken’s official specifications, no lower insertion loss values (such as 0.05 dB) are specified for this model, and such values are typically not guaranteed in practical applications.
- Q: Can this adapter be used with single-mode and multimode fibers?
- A: This adapter is designed for single-mode fiber (SMF) applications. It is not recommended for multimode systems.
- Q: How can I ensure low insertion loss during use?
- A: To ensure low insertion loss, clean the connectors before mating, avoid unnecessary repeated connections, use high-quality connectors, and ensure the correct key type is properly matched.
Questions & Answers
Q:
Is this adapter suitable for high-power applications?
A:
It is suitable for standard telecom and testing applications. For high-power laser use, please contact us to confirm compatibility.
By D******e·Jan 28, 2025
Customer Reviews
5.0 out of 5 (5 reviews)
Verified Purchase

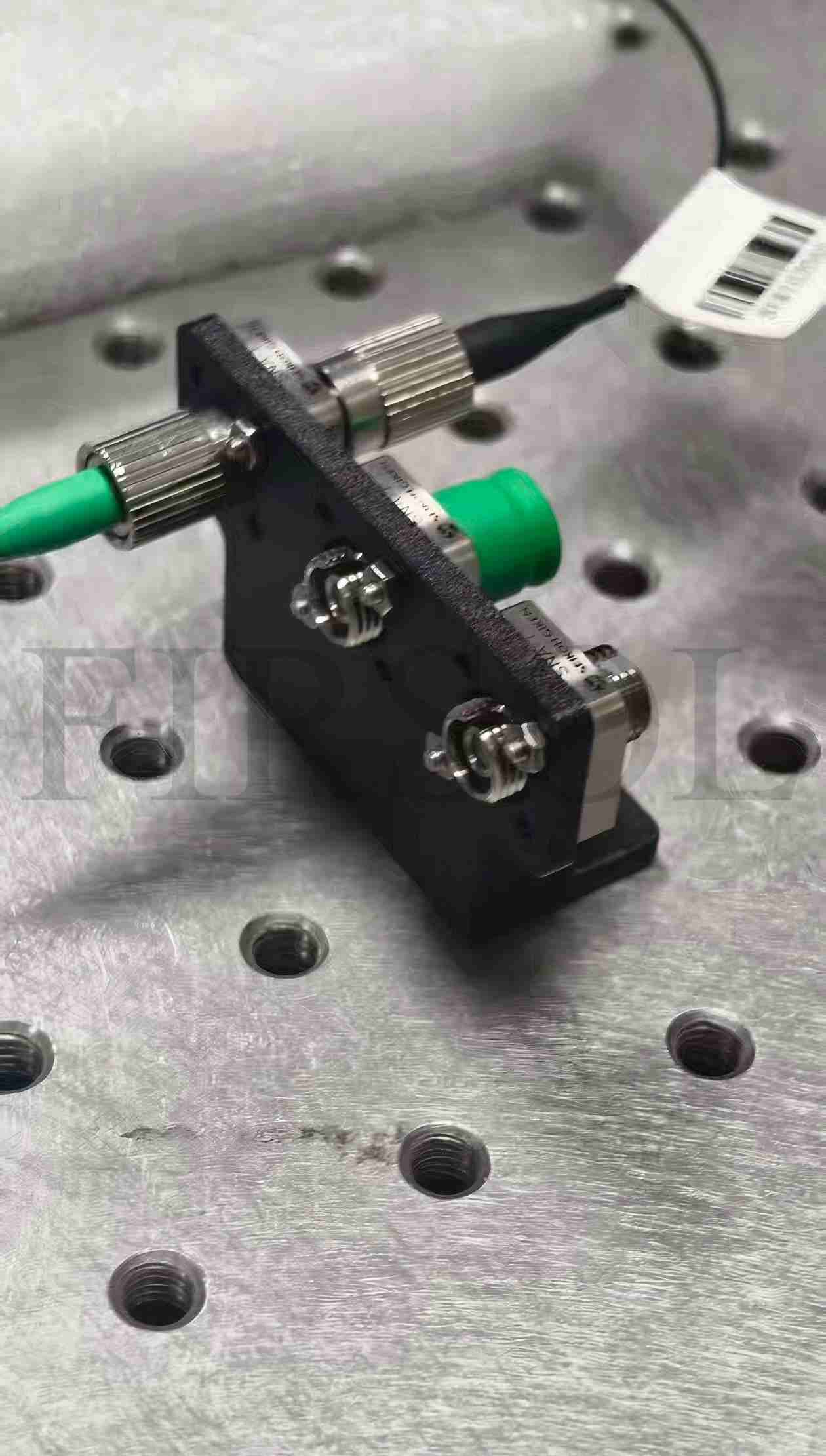

Tested with FC/APC connectors and the performance is very consistent. No unexpected loss or instability. Good fit and solid construction.
By V******n·Jun 1, 2025
Verified Purchase

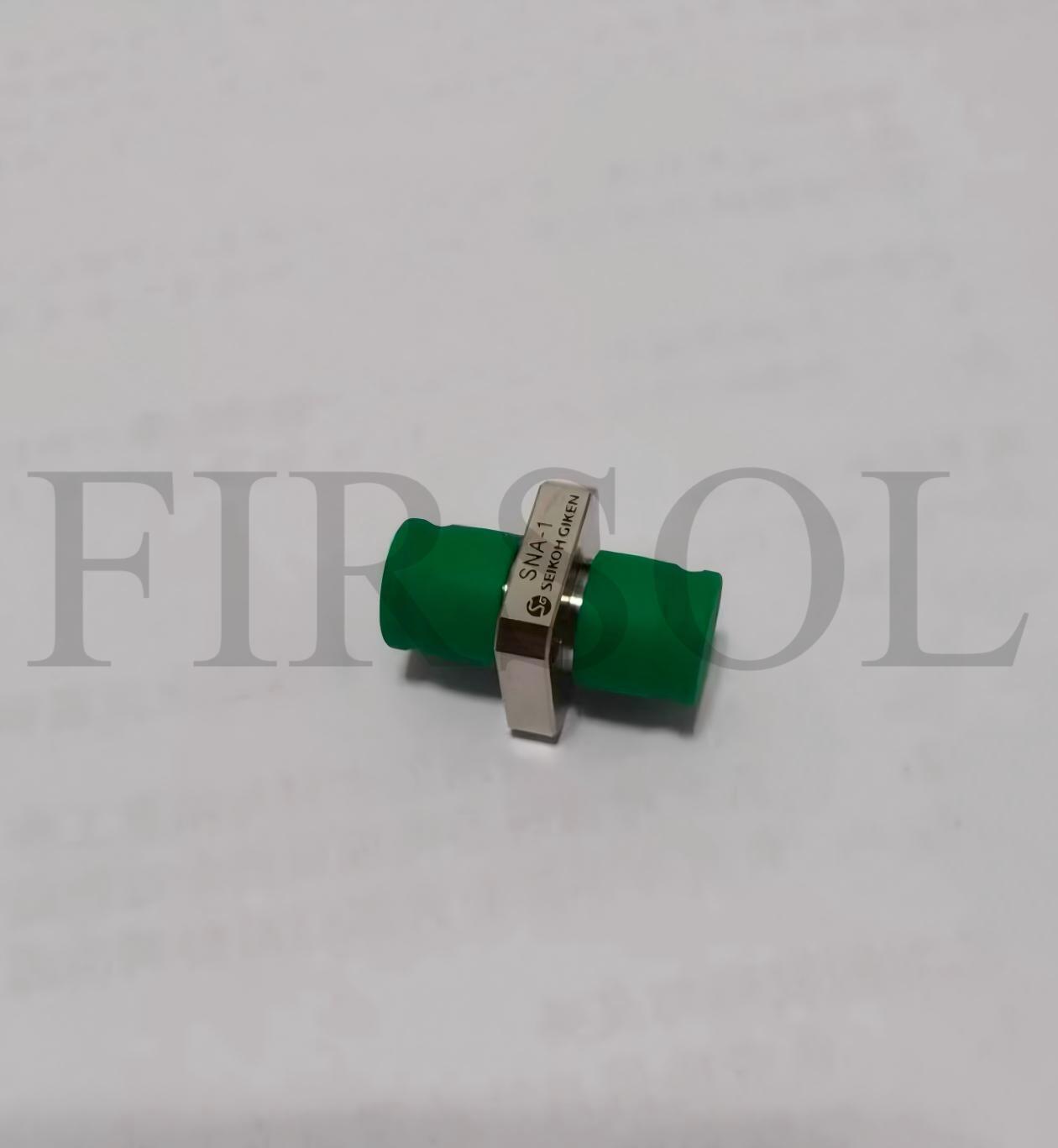

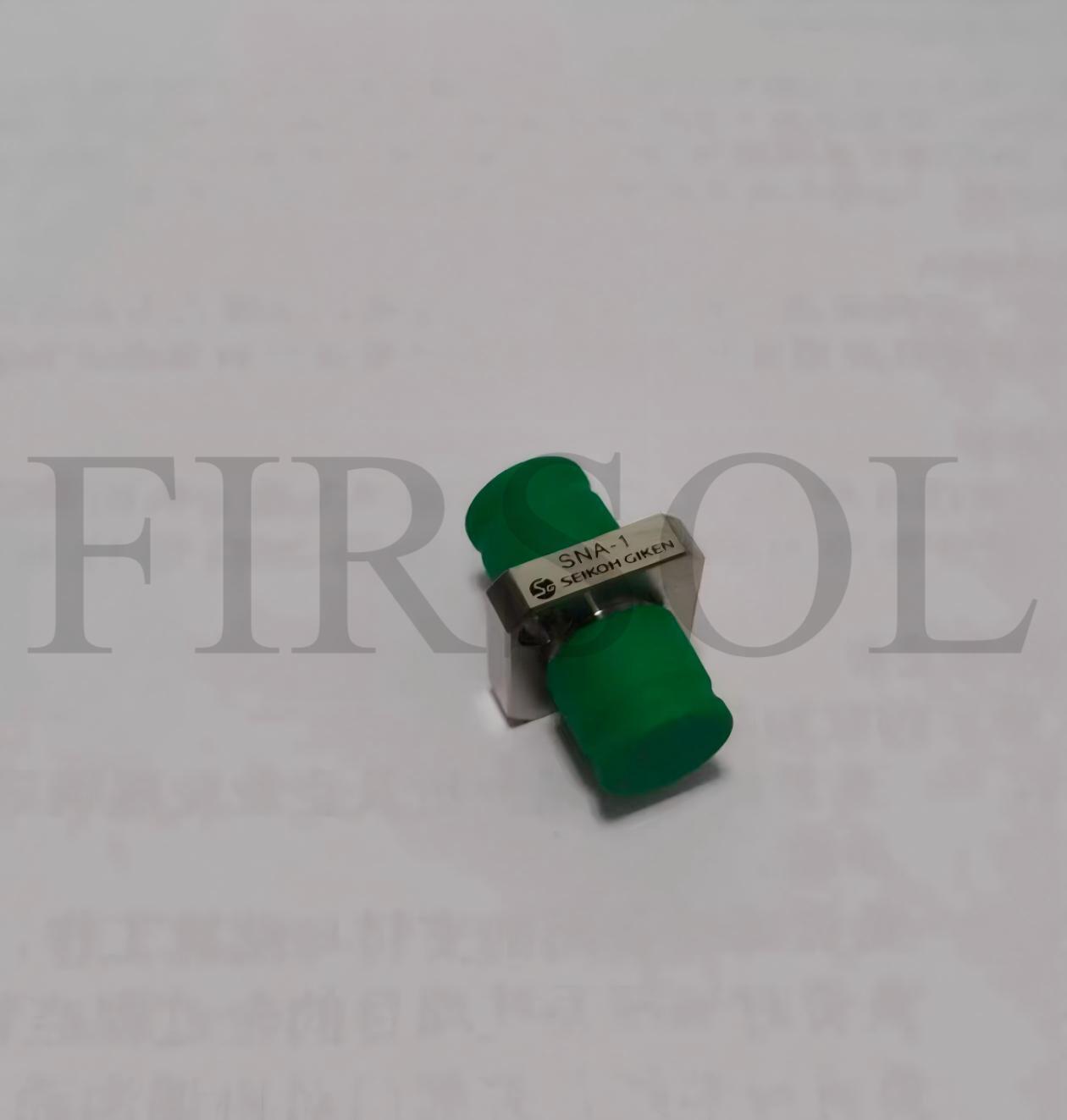

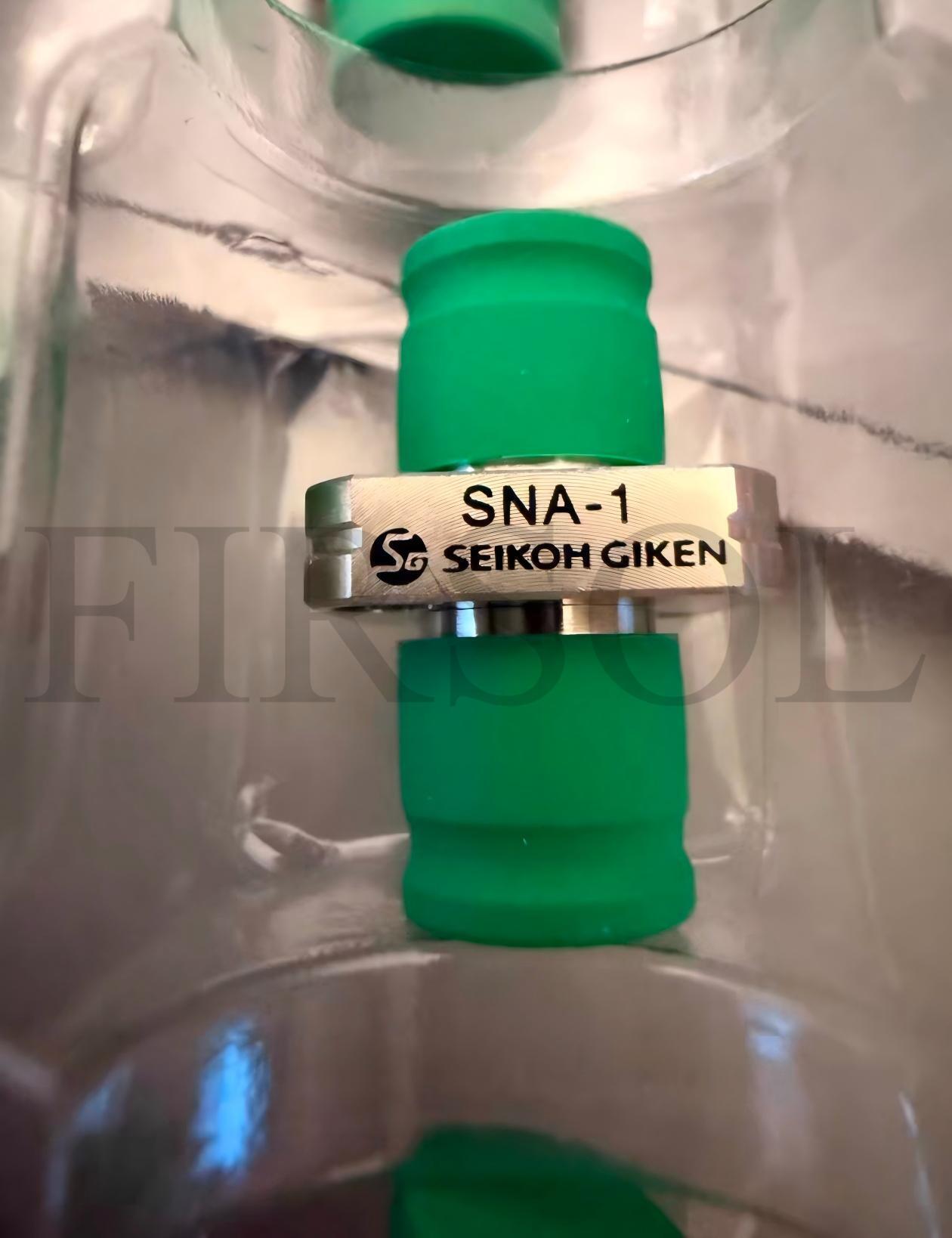

The Seikoh Giken SNA-1 adapter arrived quickly and in good condition. No issues so far.
By L******a·Apr 17, 2025
Verified Purchase
Thank you for the fast shipping. The Seikoh Giken SNA-1 adapter arrived safely and in good condition. Everything looks great. Have a good day.
By D******e·Mar 28, 2025
Verified Purchase

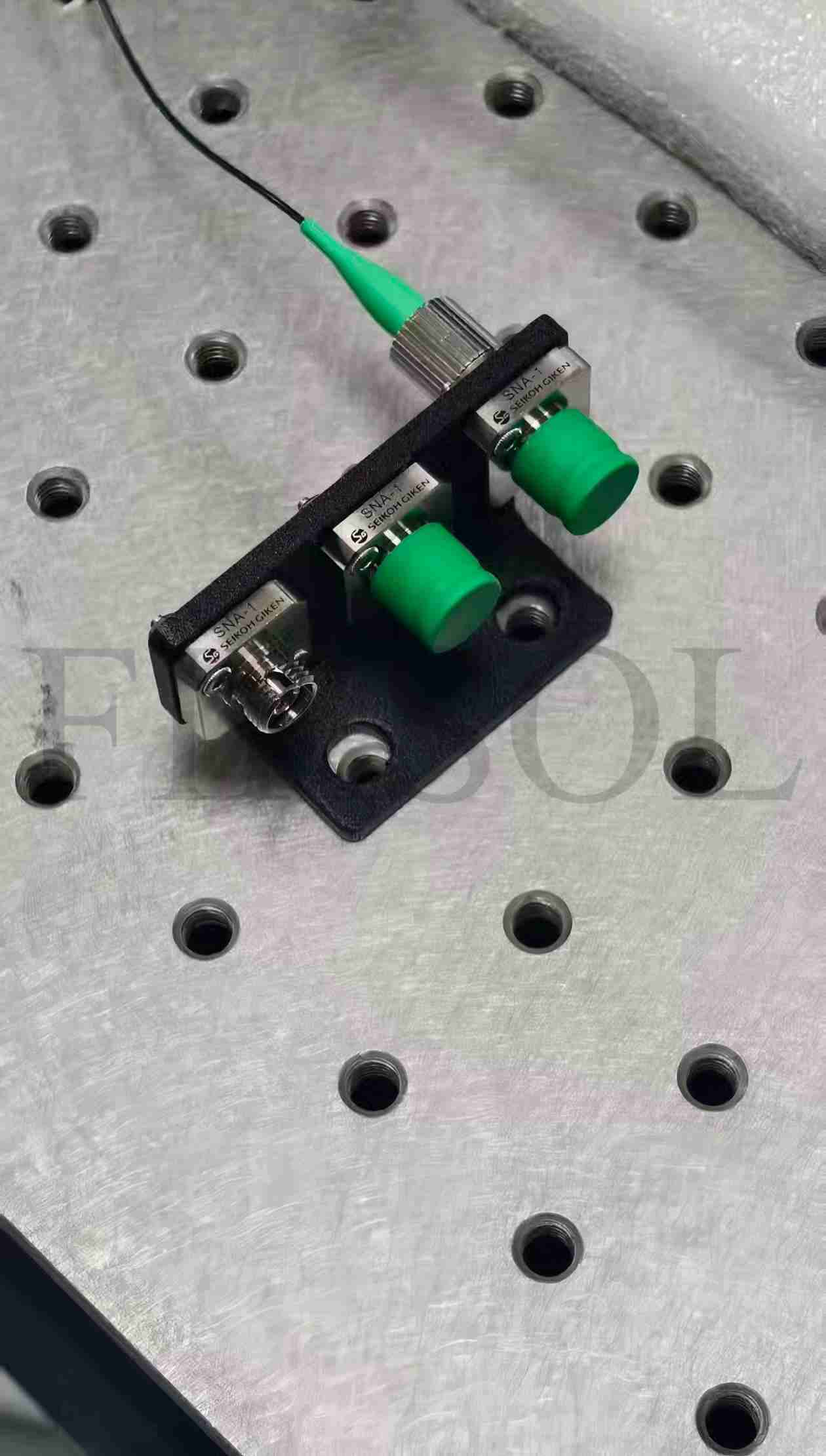

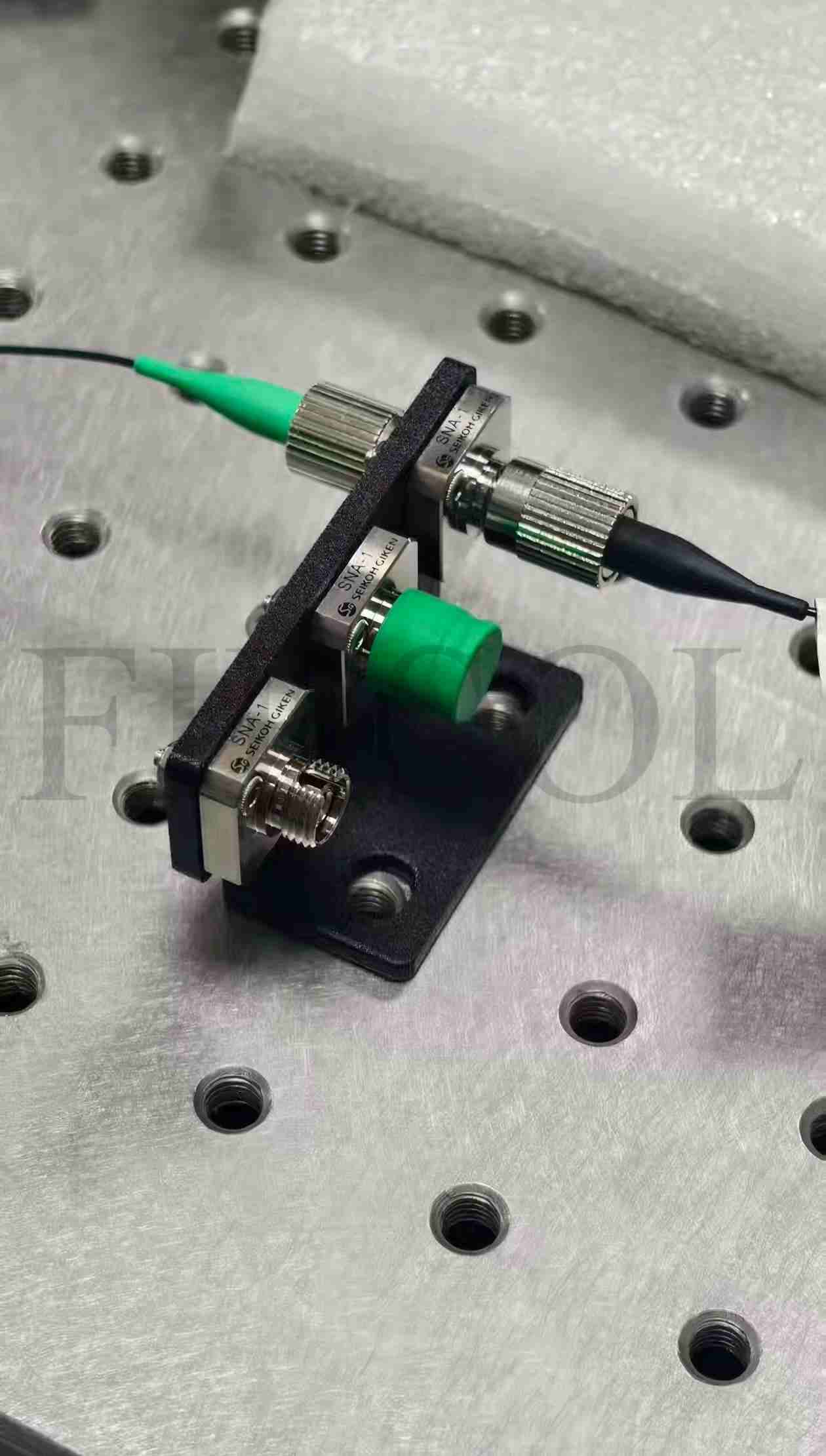

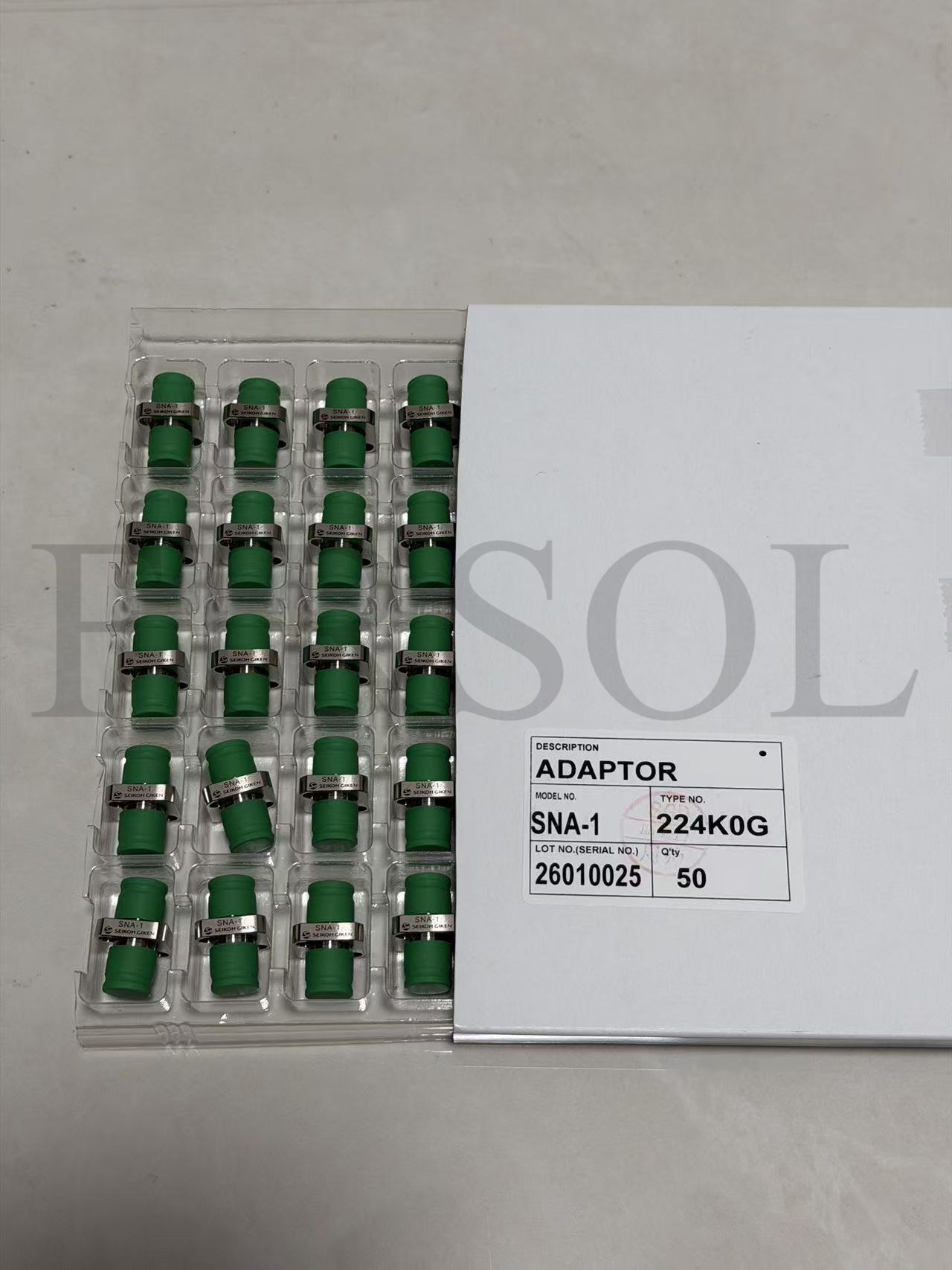

We are using this adapter in our optical testing setup. The insertion loss is stable and repeatable, which is critical for our measurements. Quality is noticeably better than standard adapters.
By P******e·Feb 12, 2025
You May Also Like

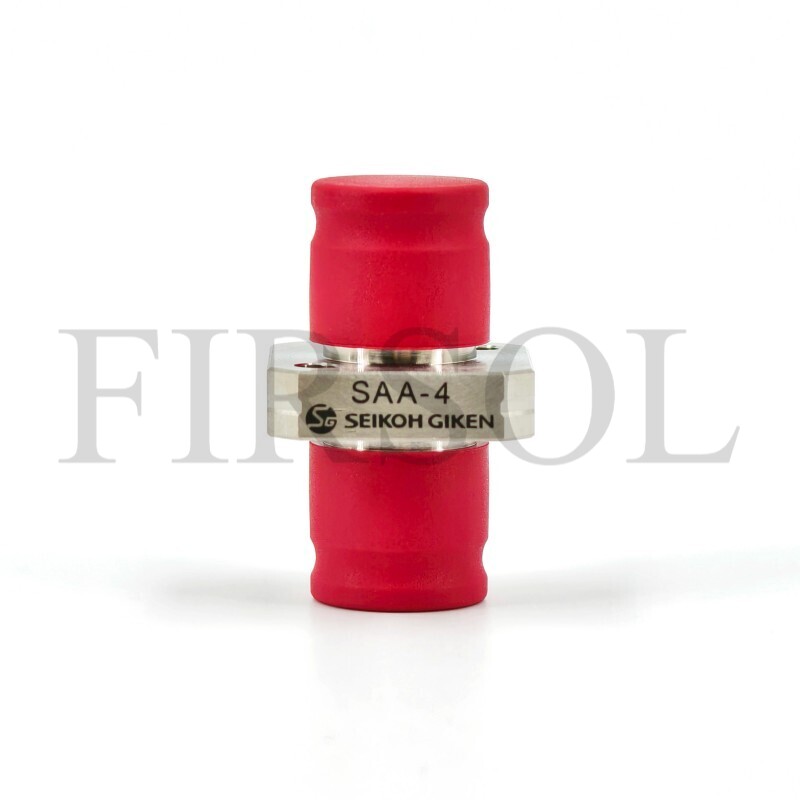

Seikoh Giken SAA-4 FC/UPC To FC/UPC Fiber Adapter
P/N: FIR-SGSAA4-FCU-FCU-FA|SKU: 10125
$12.00Excl. tax

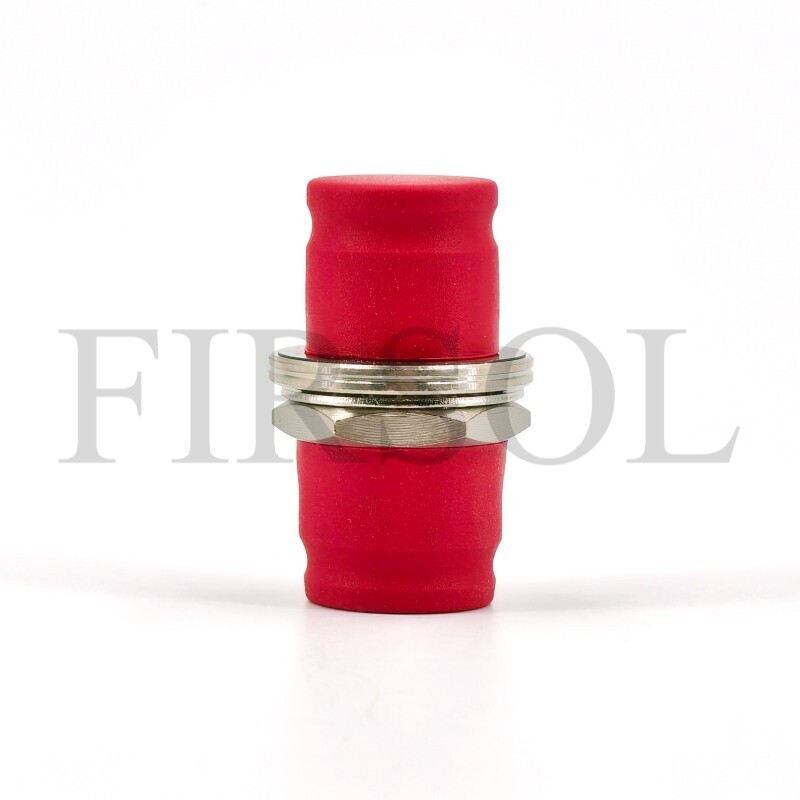

Seikoh Giken SAA-3 FC/UPC To FC/UPC D-Shape Fiber Adapter
P/N: FIR-SGSAA3-FCU-FCU-DS-FA|SKU: 10129
$21.00Excl. tax
Seikoh Giken SNA-3 FC/APC To FC/APC D-Shape Fiber Adapter
P/N: FIR-SGSNA1-FCA-FCA-DS-FA|SKU: 10126
$20.00Excl. tax

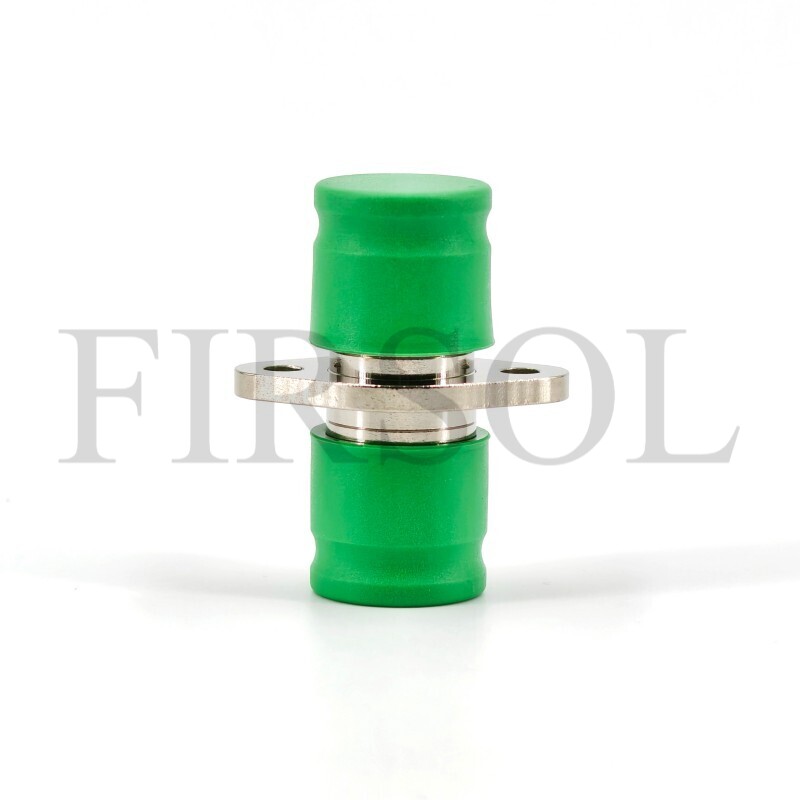

Seikoh Giken SNA-6 FC/APC To FC/APC Fiber Adapter With Oval Flange
