1300nm Multimode 1x2 Filter Coupler
P/N: FIR-1300-MM-12-FC|SKU: 12036
Total Price
$43.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1300nm Multimode 1x2 Filter Coupler
The 1300nm Multimode 1x2 Filter Coupler uses thin-film filter technology to split or combine optical power at a specified coupling ratio within the 1300nm operating band. It supports standard coupling ratios from 50/50 to 5/95, with custom ratios available for different optical power distribution and monitoring requirements. Featuring low insertion loss, low polarization-dependent loss, high stability, and a compact stainless-steel package, the coupler is suitable for multimode fiber networks, bidirectional optical communication, fiber sensing, and test equipment. OM1, OM2, OM3, and OM4 fiber options are available, while the coupling ratio, pigtail length, fiber diameter, and connector type can be customized for specific applications.
Specifications
Parameter | Unit | Value | |
|---|---|---|---|
Ports (In x Out) | - | 1x2 | |
Center Wavelength | nm | 1300 | |
Operating Wavelength Range | nm | ±40 | |
Insertion Loss | 50/50 | dB | ≤3.9/3.9 |
10/90 | dB | ≤11.5/1.2 | |
5/95 | dB | ≤14.5/0.9 | |
Return Loss | dB | ≥35 | |
Polarization Dependent Loss | dB | ≤0.15 | |
Directivity | dB | ≥30 | |
Max Optical Power (CW) | W | 0.5 | |
Fiber Type | - | OM1/OM2/OM3/OM4 | |
Package Dimensions | mm | Φ5.5 x L35 | |
Operating Temperature | °C | -10 to +70 | |
Storage Temperature | °C | -40 to +85 | |
Notes: Tested at 25 °C. Data exclude connectors; adding connectors increases insertion loss by 0.3 dB and reduces return loss by 5 dB.

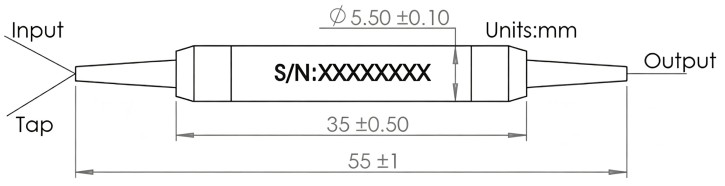

Dimensions
