1550nm Single Mode 2x2 Filter Coupler
P/N: FIR-1550-SM-22-FC|SKU: 12030
Total Price
$45.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1550nm Single Mode 2x2 Filter Coupler
The 1550nm Single Mode 2x2 Filter Coupler uses thin-film filter technology to split or combine optical power at a specified coupling ratio within the 1550nm operating band. Its four-port configuration supports bidirectional optical transmission and power monitoring in mobile fiber networks, fiber communication systems, optical sensing, and test equipment. Standard coupling ratios from 50/50 to 5/95 are available, along with customized ratios for specific power distribution requirements. Featuring low insertion loss, low polarization-dependent loss, high stability, and reliable performance, the coupler is manufactured with SMF-28e fiber and housed in a compact stainless-steel package. Coupling ratio, pigtail length, fiber diameter, and connector type can be customized.
Specifications
Parameter | Unit | Value | |
|---|---|---|---|
Ports (In x Out) | - | 2x2 | |
Center Wavelength | nm | 1550 | |
Operating Wavelength Range | nm | ±40 | |
Insertion Loss | 50/50 | dB | ≤3.9/3.9 |
10/90 | dB | ≤11.3/1.1 | |
5/95 | dB | ≤14.5/0.9 | |
Return Loss | dB | ≥50 | |
Polarization Dependent Loss | dB | ≤0.15 | |
Directivity | dB | ≥50 | |
Max Optical Power (CW) | W | 0.5 | |
Fiber Type | - | SMF-28e | |
Package Dimensions | mm | Φ5.5 x L35 | |
Operating Temperature | °C | -10 to +70 | |
Storage Temperature | °C | -40 to +85 | |
Notes: Tested at 25 °C. Data exclude connectors; adding connectors increases insertion loss by 0.3 dB and reduces return loss by 5 dB.

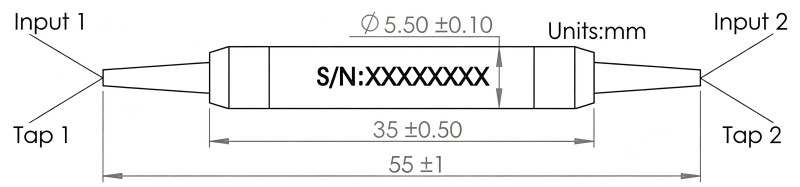

Dimensions
Questions & Answers
No questions yet. Ask the first question about this product.
Customer Reviews
No reviews yet. Be the first to review this product.
You May Also Like
1310nm Single Mode 2x2 Filter Coupler
P/N: FIR-1310-SM-22-FC|SKU: 12028
1310/1550nm Dual-Wavelength Single Mode 2x2 Filter Coupler
P/N: FIR-1315-DW-SM-22-FC|SKU: 12032
850nm Multimode 2x2 Filter Coupler
P/N: FIR-850-MM-22-FC|SKU: 12038
1300nm Multimode 2x2 Filter Coupler
P/N: FIR-1300-MM-22-FC|SKU: 12040

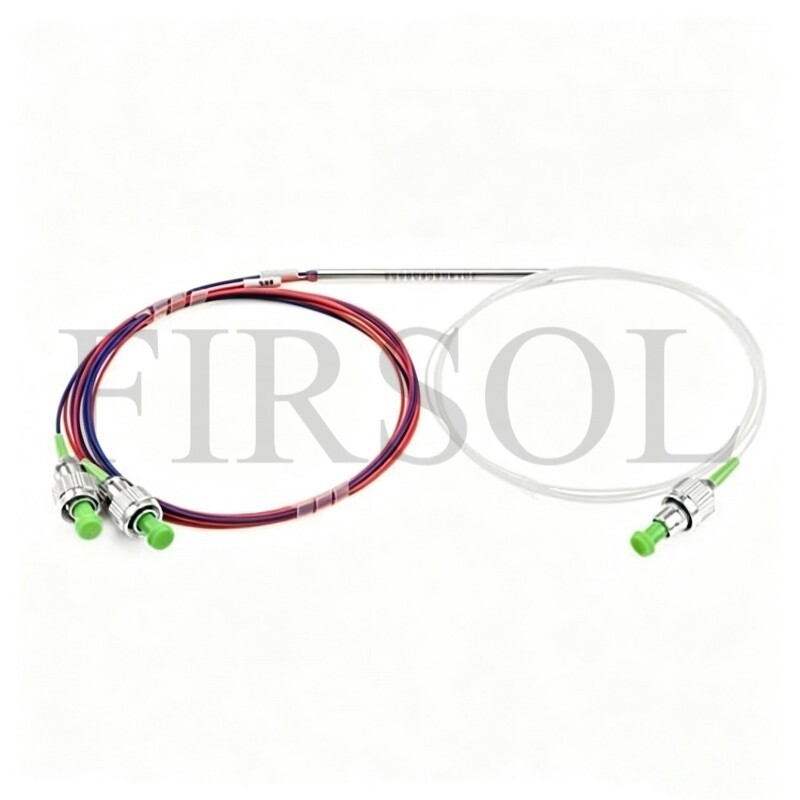

1300nm Multimode 1x2 Filter Coupler
