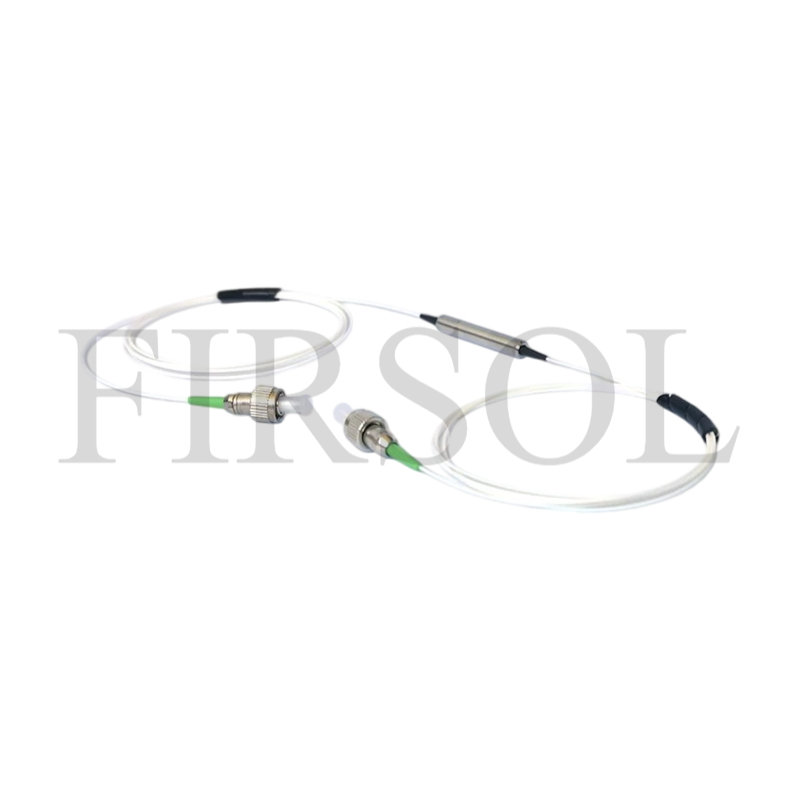

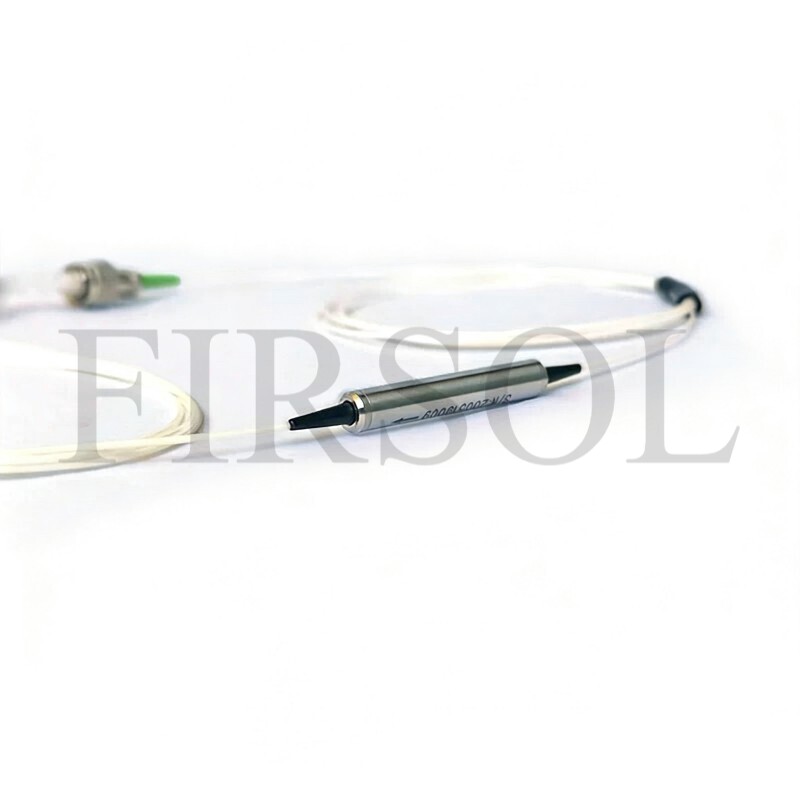

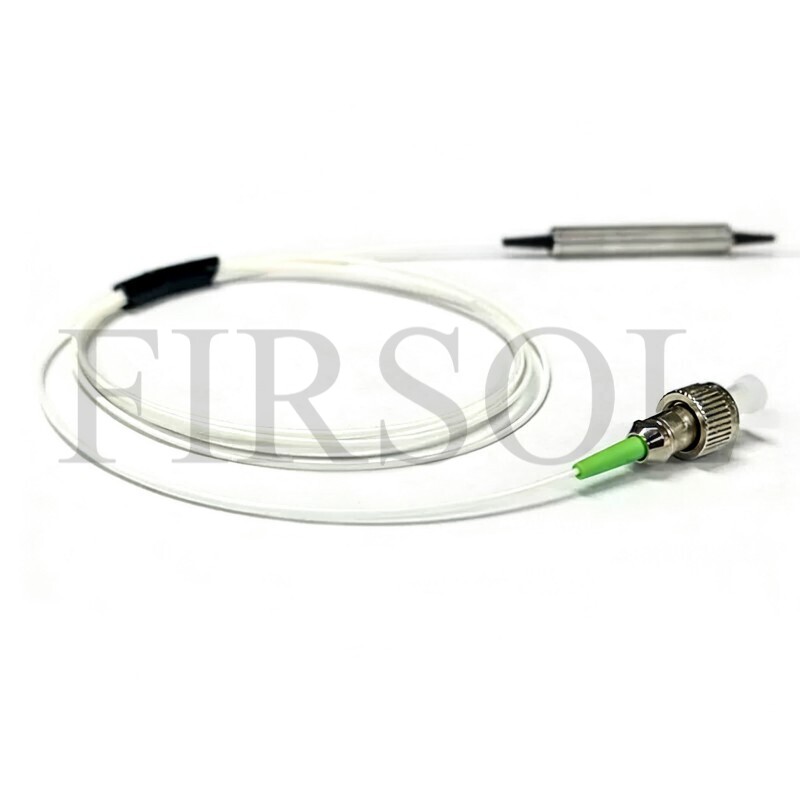

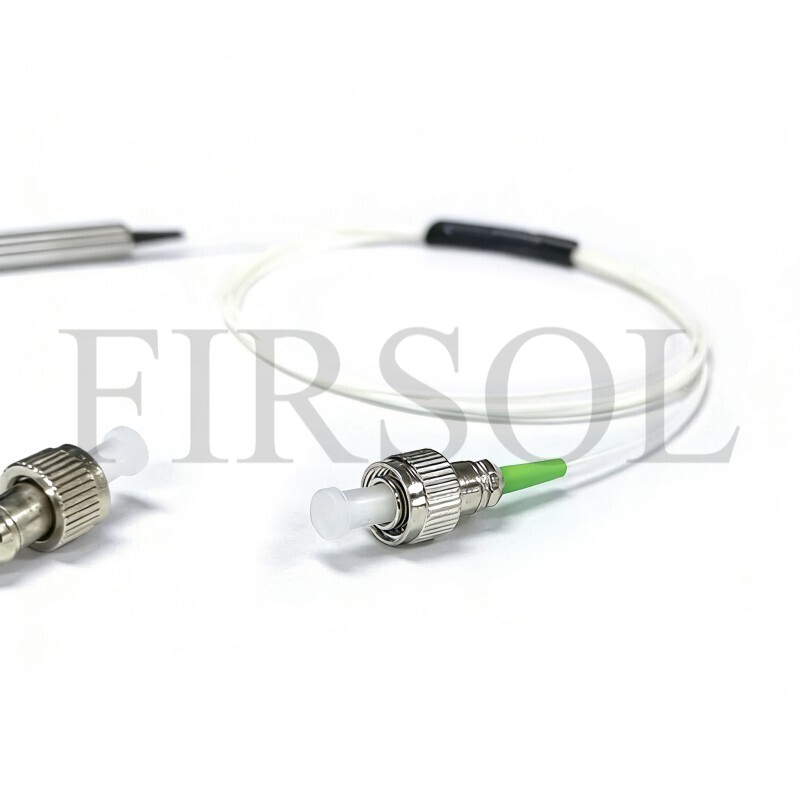

1310nm Single Mode Polarization Insensitive Optical Isolator
P/N: FIR-1310-SM-PI-OI|SKU: 10237
Unit Price
MOQ: 1 pcs
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1310nm Single Mode Polarization Insensitive Optical Isolator
The 1310nm Single Mode Polarization Insensitive Optical Isolator is a passive fiber optic device designed to ensure unidirectional light transmission and effectively suppress back reflections in optical systems. It operates at 1310 nm with a wide wavelength tolerance (±20 nm), making it well-suited for O-band communication and precision optical applications.
With a polarization insensitive design, the isolator maintains stable performance regardless of input polarization variations in standard single mode fiber systems. It provides reliable protection for laser sources while minimizing signal degradation through low insertion loss and high return loss.
Available in both single stage and dual stage configurations, this isolator supports flexible system design for applications requiring either low loss or enhanced isolation performance.
Specifications
Parameter | Unit | Value | |
|---|---|---|---|
Center Wavelength | nm | 1310 | |
Operating Wavelength Range | nm | ±20 | ±20 |
Single/Dual Stage | - | Single Stage | Dual Stage |
Peak Isolation (Typ.) | dB | 45 | 55 |
Isolation (Min.) | dB | 32 | 45 |
Insertion Loss (Max.) | dB | 0.5 | 0.6 |
Return Loss (Min.) | dB | 50 | |
Polarization Dependent Loss | dB | ≤0.2 | |
Max Optical Power (CW) | W | 0.5/1/2/5 | |
Max Peak Power (Pulse) | KW | <1@ns pulse | |
Fiber Type | - | SMF-28e | |
Package Dimensions | mm | Φ5.5 x L35 | |
Operating Temperature | °C | -5 to +70 | |
Storage Temperature | °C | -40 to +85 | |
Notes: Tested at 25 °C. Data exclude connectors. Adding connectors will increase insertion loss by approximately 0.3 dB, reduce return loss by 5 dB.

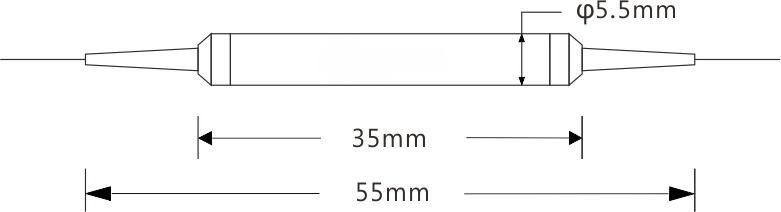

Dimensions
