1x1 Mini Mechanical Optical Switch
P/N: FIR-11-MMOS|SKU: 12282
Total Price
$89.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

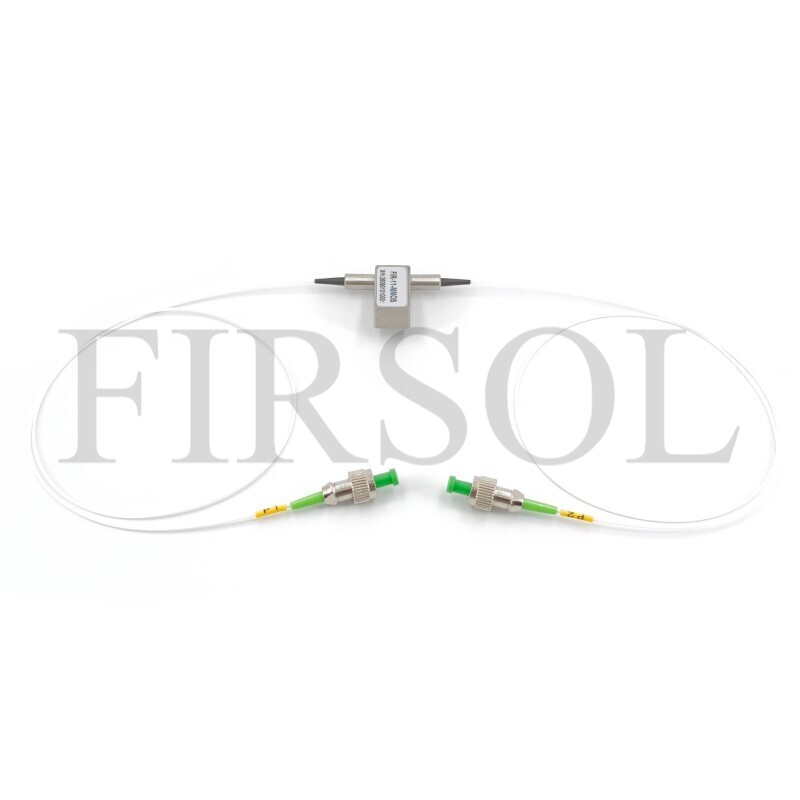

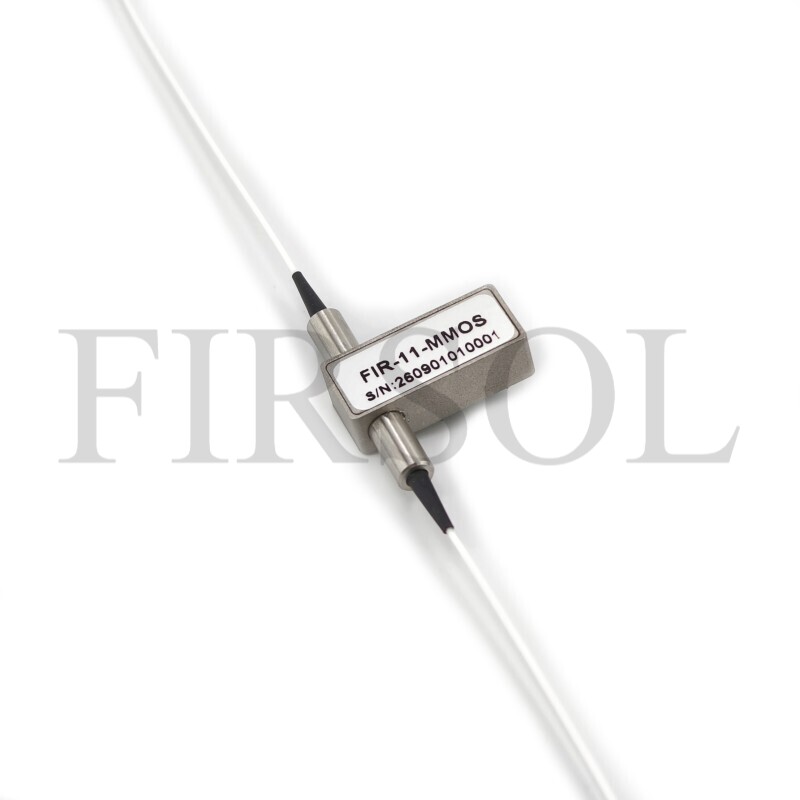

1x1 Mini Mechanical Optical Switch
The 1x1 Mini Mechanical Optical Switch is a compact fiber optic switching device designed for reliable ON/OFF control of a single optical path between one input port and one output port. Using a mechanical switching mechanism, it delivers low insertion loss of ≤0.8 dB, high repeatability, and fast switching time of ≤8 ms. The switch supports multiple center wavelengths from 650 nm to 1650 nm, 3 V or 5 V drive voltage, and both latching and non-latching control options. With a compact 27 × 12.6 × 8.5 mm package and a lifetime of ≥10⁷ switching cycles, it is well suited for optical network monitoring, fiber optic testing, optical sensing, laser systems, instrumentation, and other applications requiring stable optical path control.
Specifications
Parameter | Unit | Value | |
Center Wavelength | nm | 650/780/850/980/1064 | 1310/1490/1550/1625/1650 |
Operating Wavelength Range | nm | 650-1310 | 1260-1670 |
Insertion Loss | dB | ≤0.8 | |
Return Loss | dB | ≥30 | ≥50 |
Crosstalk | dB | ≥35 | ≥55 |
Polarization Dependent Loss | dB | ≤0.05 | |
Wavelength Dependent Loss | dB | ≤0.25 | |
Temperature Dependent Loss | dB | ≤0.25 | |
Repeatability | dB | ≤±0.02 | |
Power supply | V | 3.0 or 5.0 | |
Lifetime | Cycle | ≥10⁷ | |
Switch Time | ms | ≤8 | |
Max Optical Power (CW) | mW | 500 | |
Fiber Type | - | SMF-28e | |
Package Dimensions | mm | L27 x W12.6 x H8.2 | |
Operating Temperature | °C | -20 to +70 | |
Storage Temperature | °C | -40 to +85 | |

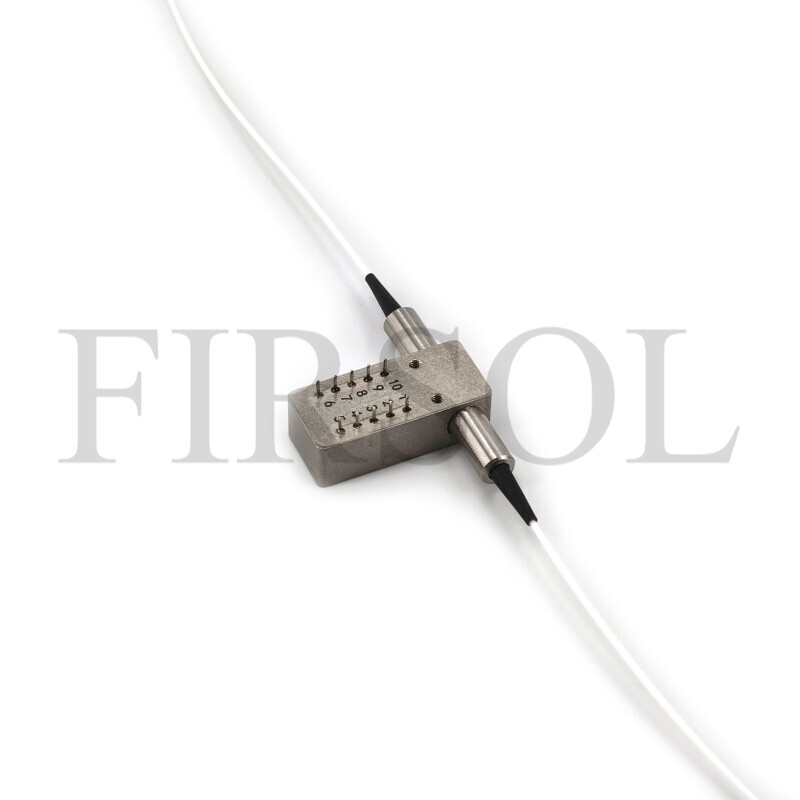

Pins
Optical Path | Electric Drive | Sensor Status | |||||
Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3/8-9 | Pin 3-4/7-8 | ||
Latching | A | V+ | GND | N/A | N/A | OPEN | CLOSE |
B | N/A | N/A | GND | V+ | CLOSE | OPEN | |
Non-Latching | A | V+ | N/A | N/A | GND | OPEN | CLOSE |
B | N/A | N/A | N/A | N/A | CLOSE | OPEN | |
Optical Route
State A | State B |
P1-P2 | Light Close |
 |  |
Electrical Specifications
Parameter | Voltage | Current | Resistance |
5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
5V Non-Latching | 4.5~5.5 | 26~32mA | 175Ω |
3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
3V Non-Latching | 2.7~3.3 | 39~47mA | 70Ω |

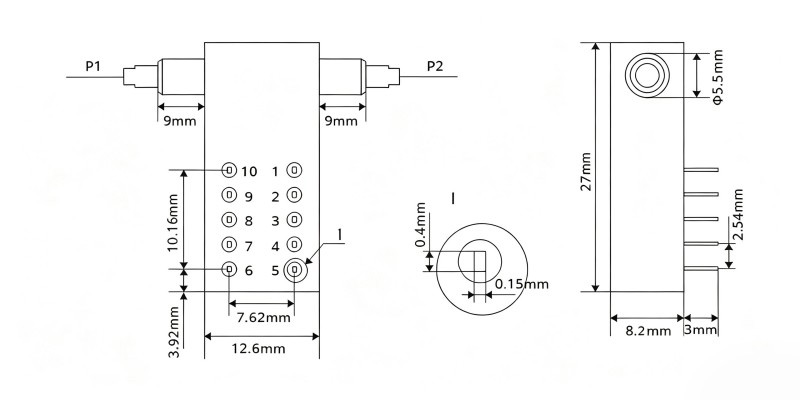

Dimensions
