532nm Polarization Beam Splitter/Combiner
P/N: FIR-532-PBS/PBC|SKU: 10366
Unit Price
MOQ: 1 pcs
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
532nm Polarization Beam Splitter/Combiner
The 532nm Polarization Beam Splitter/Combiner (PBS/PBC) is a passive fiber optic polarization management device designed for separating or combining orthogonal polarization states at the 532nm wavelength. It can split randomly polarized input light into two orthogonally polarized output signals or combine two orthogonally polarized input signals into a single output fiber with low insertion loss and high extinction ratio.
Built using polarization-maintaining (PM) fiber technology, this 532nm PBS/PBC provides stable polarization performance, high directivity, and reliable optical characteristics for visible wavelength laser and photonic applications. Port 1 and Port 2 are configured with PM fiber, while Port 3 can be supplied with either single mode fiber (SMF) or all-PM fiber configurations according to system requirements.
With compact package dimensions, low insertion loss, and excellent polarization handling capability, the device is widely used in biomedical optics, laser instrumentation, spectroscopy systems, optical sensing, scientific research, and polarization-maintaining fiber applications.
Specifications
Parameter | Unit | Value |
|---|---|---|
Center Wavelength | nm | 532 |
Operating Wavelength Range | nm | ±10 |
Insertion Loss (Max.) | dB | 1.5 |
Return Loss (Min.) | dB | 50 |
Extinction Ratio (Min.) | dB | 18 |
Directivity (Min.) | dB | 50 |
Max Optical Power (CW) | W | 0.1 |
Fiber Type | - | Port 1 and Port 2 PMF; Port 3 SMF or All PMF |
Tensile Load | N | 5 |
Package Dimensions | mm | 14 x 12 x 8 |
Operating Temperature | °C | -5 to +70 |
Storage Temperature | °C | -40 to +85 |
Notes: Tested at 25 °C. Data exclude connectors. Adding connectors will increase insertion loss by approximately 1.2 dB, reduce return loss by 5 dB, and decrease extinction ratio by 2 dB. The fiber slow axis is aligned to the key by default.

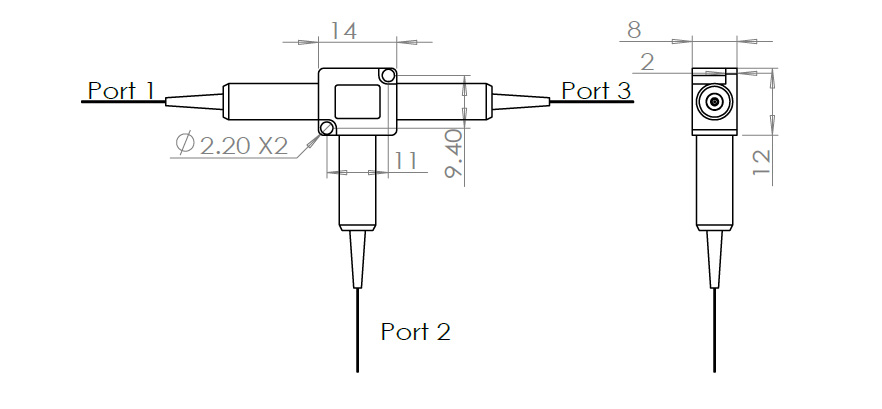

Dimensions
