Custom OS2 Single Mode Duplex Armored Fiber Patch Cable
P/N: FIR-C-OS2D-RFPC|SKU: 11451
Total Price
$8.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
Custom OS2 Single Mode Duplex LC/SC/FC/ST/E2000 Armored Fiber Patch Cable

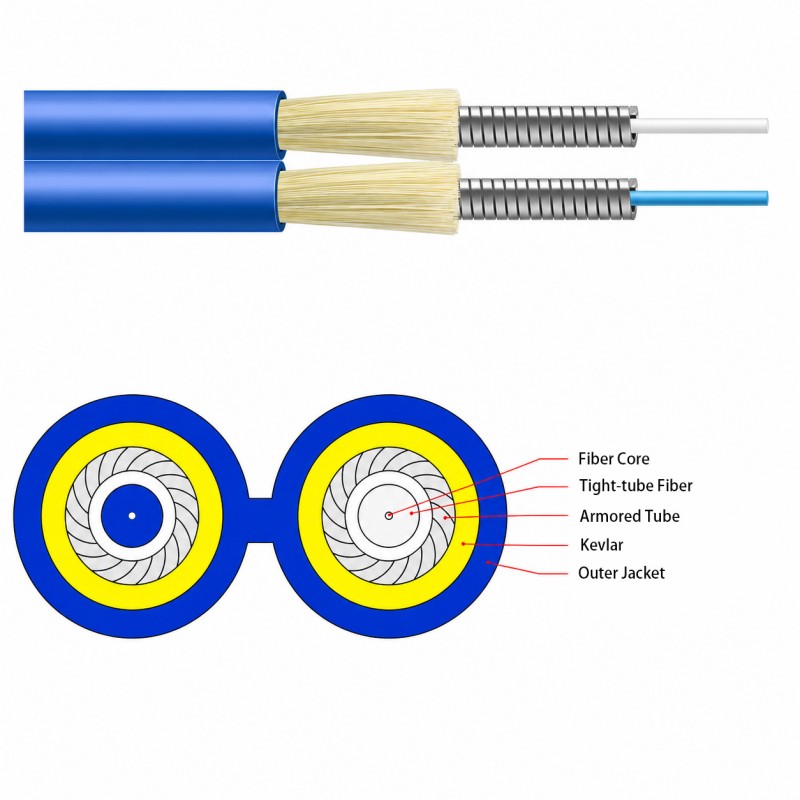

The Firsol Custom OS2 Single Mode Duplex Armored Fiber Patch Cable combines two OS2 9/125 μm single-mode fibers for simultaneous transmit-and-receive connections. A flexible metal armor layer, typically constructed from stainless steel tubing, protects the internal fibers against crushing, excessive bending, pulling, accidental impact, and rodent damage while maintaining sufficient flexibility for installation and cable routing. It is suitable for data centers, telecommunications networks, industrial systems, equipment rooms, FTTH networks, and other environments requiring durable duplex fiber connectivity.
Designed for operation at 1310 nm and 1550 nm, the cable offers an insertion loss of ≤0.3 dB and a return loss of ≥50 dB for UPC connectors or ≥60 dB for APC connectors. Available connector options include LC, SC, FC, ST, and E2000, with matching or hybrid connector combinations. The standard cable diameter is 3.0 mm, and the assembly provides connector durability of at least 1,000 mating cycles.
Firsol supports customization of cable length, connector type, polishing type, cable jacket, cable color, connector combination, and pulling-eye configuration. PVC, LSZH, and OFNP jacket options are available to meet different installation, fire-safety, and network deployment requirements.
Specifications
Parameter | Unit | LC, SC, FC, E2000 | ST | ||||
|---|---|---|---|---|---|---|---|
SM | MM | SM | MM | ||||
UPC | APC | UPC | APC | UPC | UPC | ||
Operating Wavelength | nm | 1310, 1550 | 850, 1300 | 1310, 1550 | 850, 1300 | ||
Insertion Loss | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
Return Loss | dB | ≥50 | ≥60 | ≥35 | ≥50 | ≥35 | |
Repeatability | dB | ≤0.1 | |||||
Interchangeability | dB | ≤0.2 | |||||
Fiber Type | - | OS2 9/125μm | |||||
Fiber Count | - | Duplex | |||||
Fiber Grade | - | G.652.D/G.657.A1 | |||||
Cable Diameter | mm | 3.0 | |||||
Connector Durability | times | ≥1000 | |||||
Operating Temperature | °C | -10 to +70 | |||||
Storage Temperature | °C | -40 to +85 | |||||
