LC/UPC Single Mode Adapter Type Variable Optical Attenuator
P/N: FIR-LCUPC-SM-AT-VOA|SKU: 10123
Unit Price
MOQ: 1 pcs
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

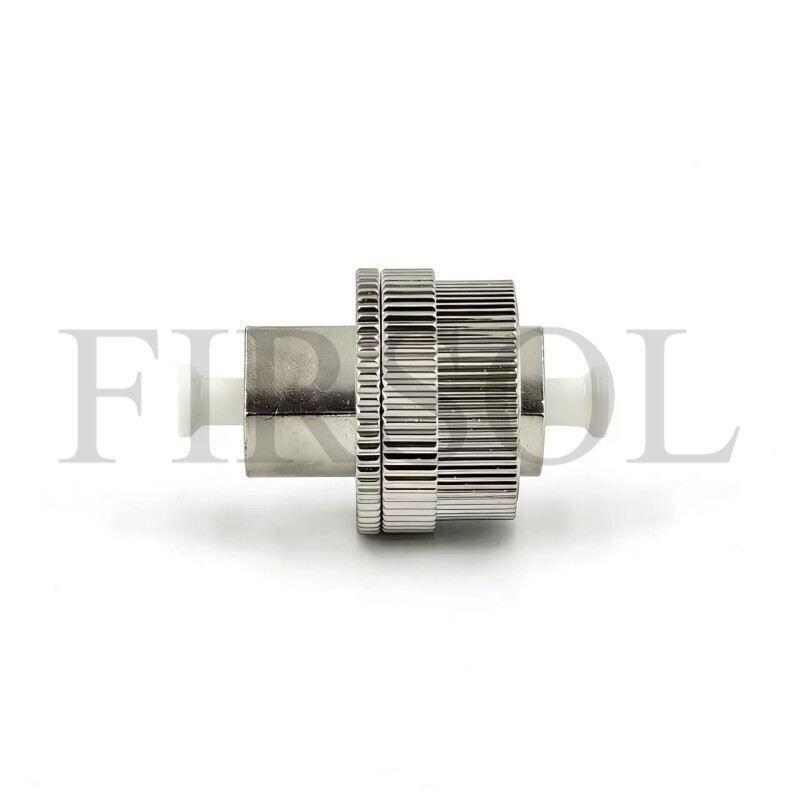

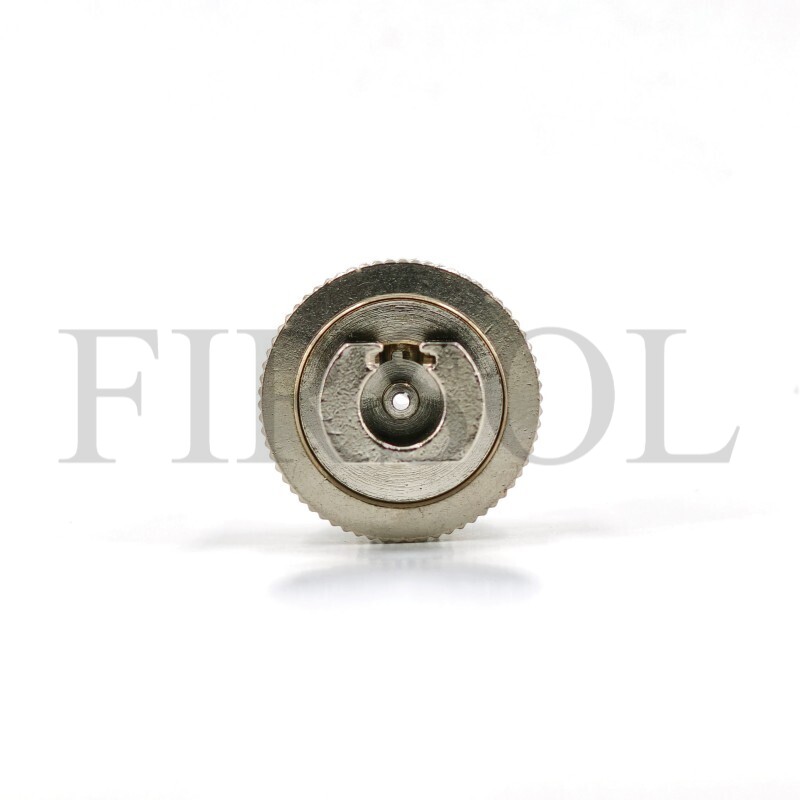

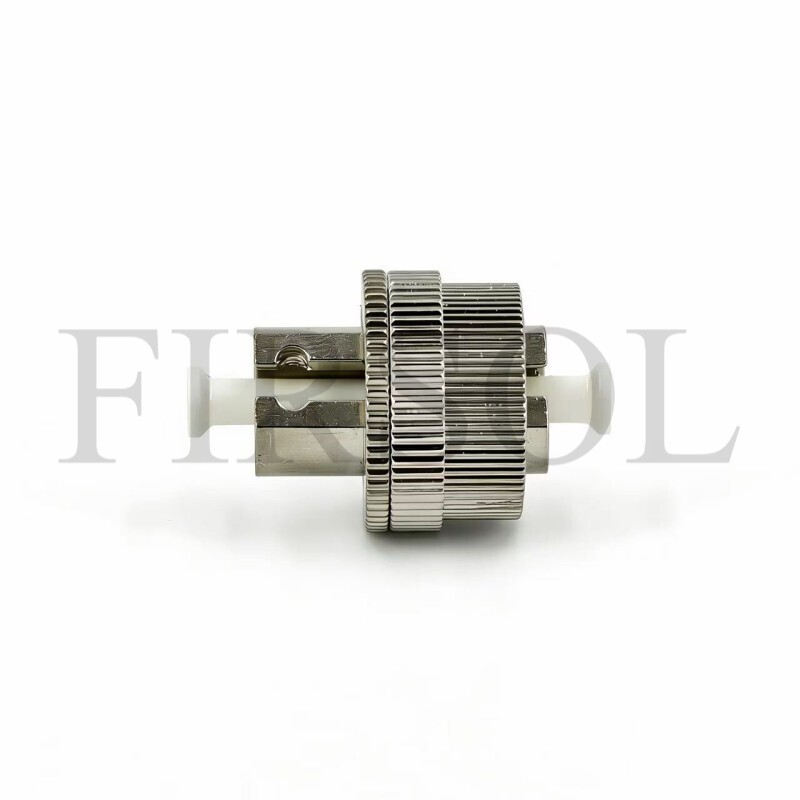

LC/UPC Single Mode Adapter Type Variable Optical Attenuator
The LC/UPC Single Mode Adapter Type Variable Optical Attenuator is a compact, plug-in device designed for precise manual adjustment of optical signal power in single-mode fiber systems. With a female-to-female adapter configuration, it can be directly connected between two LC/UPC connectors without requiring additional fiber pigtails.
This attenuator provides a continuously adjustable attenuation range from 1 dB to 30 dB, enabling flexible optical power control for testing, calibration, and system optimization. The LC/UPC interface ensures stable connection performance and reliable operation in standard telecom and laboratory environments.
Specifications
Connector A | LC/UPC | Connector B | LC/UPC |
Fiber Type | Single Mode | Operating Wavelength | 1260 ~ 1620nm |
Body Style | Simplex | Alignment Sleeve | Zirconia Ceramic |
Attenuation | 1 ~ 30dB | Attenuation Accuracy | ±0.8dB |
Durability | 1000 Times | Humidity | 95%RH |
Operating Temperature | -25°C to +70°C | Storage Temperature | -40°C to +85°C |
