1310nm Single Mode 3 Ports Optical Circulator
P/N: FIR-1310-SM-3P-OC|SKU: 10177
Total Price
$289.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
1310nm Single Mode 3 Ports Optical Circulator
The 1310nm Single Mode 3 Ports Optical Circulator is a passive, polarization-insensitive, nonreciprocal device designed to route light from Port 1 to Port 2 and from Port 2 to Port 3. With an operating wavelength range of 1310 ± 30 nm, it provides low insertion loss of ≤0.8 dB, isolation of ≥40 dB, return loss of ≥50 dB, and polarization-dependent loss of ≤0.15 dB, enabling efficient separation of forward- and backward-propagating signals.
Built with SMF-28e fiber, the circulator integrates easily into standard single-mode fiber systems and is available with maximum CW power options of 0.5 W, 1 W, or 5 W. It is well suited for bidirectional optical transmission, FBG-based systems, OTDR, fiber sensing, test and measurement, and other O-band applications. Pigtail length, fiber protection, and connector type can be configured to meet specific system and installation requirements.
Specifications
Parameter | Unit | Value |
|---|---|---|
Center Wavelength | nm | 1310 |
Operating Wavelength Range | nm | ±30 |
Peak Isolation | dB | ≥50 |
Isolation | dB | ≥40 |
Insertion Loss | dB | ≤0.8 |
Return Loss | dB | ≥50 |
Polarization Dependent Loss | dB | ≤0.15 |
Max Optical Power (CW) | W | 0.5/1/5 |
Max Peak Power (Pulse) | KW | <10@ns pulse |
Crosstalk | dB | ≥45 |
Fiber Type | - | SMF-28e |
Package Dimensions | mm | Φ5.5 x L50 |
Operating Temperature | °C | -5 to +70 |
Storage Temperature | °C | -40 to +85 |
Notes: Tested at 25 °C. Data exclude connectors. Adding connectors will increase insertion loss by approximately 0.3 dB, reduce return loss by 5 dB.

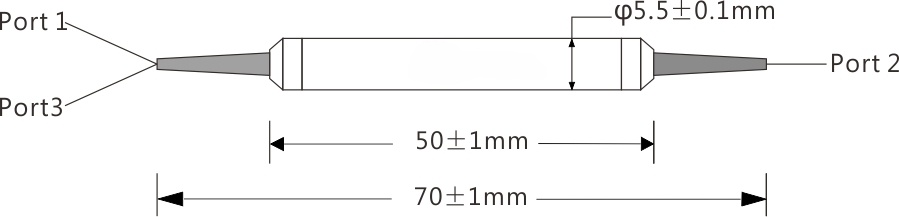

Dimensions
Questions & Answers
No questions yet. Ask the first question about this product.
Customer Reviews
No reviews yet. Be the first to review this product.
You May Also Like

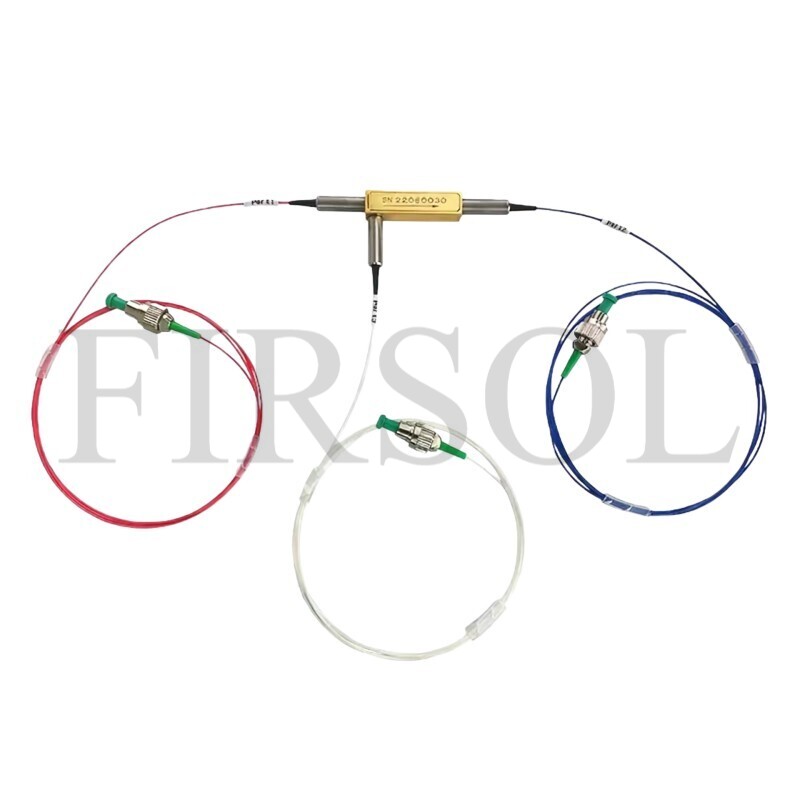

1064nm Single Mode 3 Ports Optical Circulator
