OM3 Multimode 16 Fiber MPO-16 To MPO-16 Trunk Cable
P/N: FIR-OM3-16F-MPO16-TC|SKU: 11952
Total Price
$122.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

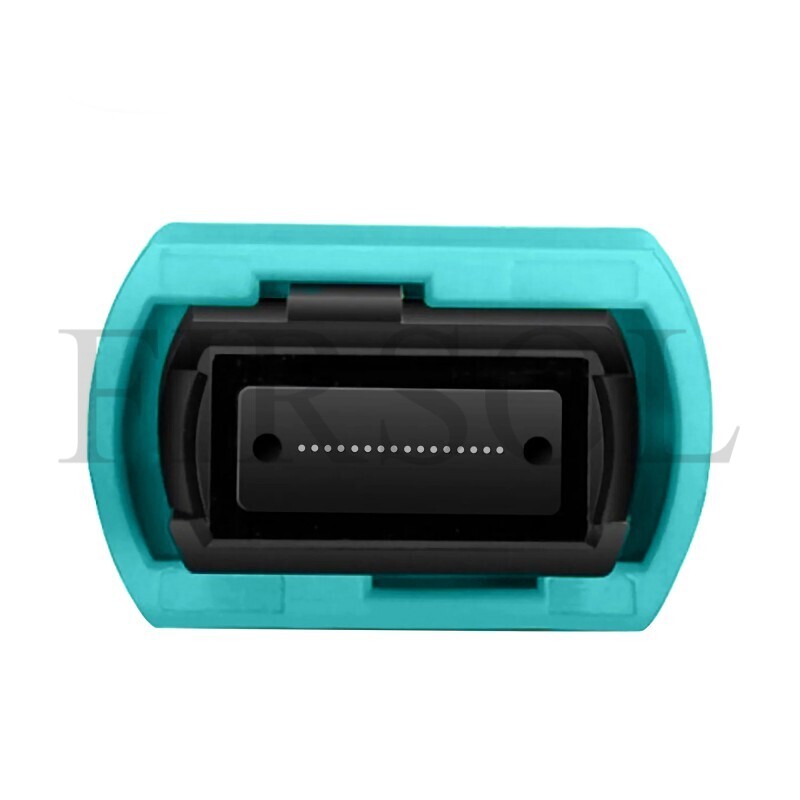

OM3 Multimode 16 Fiber MPO-16 To MPO-16 Trunk Cable
The OM3 Multimode 16 Fiber MPO-16 to MPO-16 Trunk Cable provides a high-density, plug-and-play cabling solution for parallel-optics networks, data centers, and structured cabling systems. It features sixteen OM3 multimode fibers terminated with MPO-16 connectors at both ends, helping simplify installation while reducing cable congestion and pathway space requirements. Designed for reliable high-speed optical connectivity, this trunk cable is available with customizable lengths, polarity methods, connector genders, pulling eyes, and cable jacket options.
Specifications
End A | MPO | End B | MPO |
Fiber Type | OM3 50/125μm Multimode | Wavelength | 850/1300nm |
Fiber Count | 16 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 90/180N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |
16 Fibers MPO-16 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
