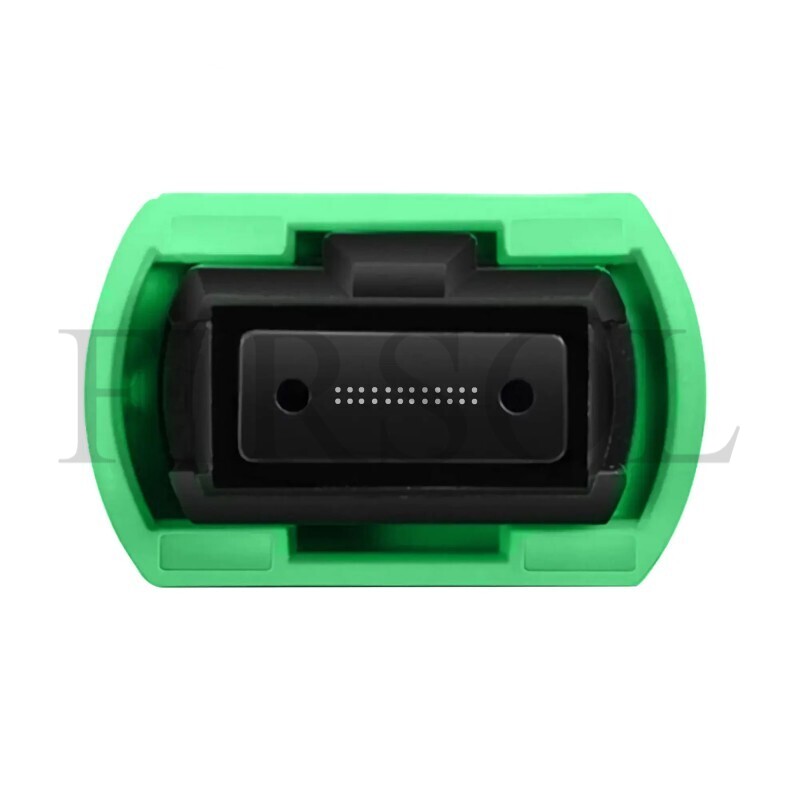

OS2 Single Mode 24 Fiber MPO-24 To MPO-24 Trunk Cable
P/N: FIR-OS2-24F-MPO24-TC|SKU: 11731
Total Price
$152.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OS2 Single Mode 24 Fiber MPO-24 To MPO-24 Trunk Cable
OS2 Single Mode 24 Fiber MPO-24 To MPO-24 Trunk Cable is a high-density pre-terminated fiber optic cabling solution designed for data centers, telecom networks, and high-capacity optical infrastructure. Featuring MPO-24 connectors on both ends, this trunk cable provides 24 fibers within a compact interface, enabling efficient backbone connectivity while reducing cable congestion in high-density network environments.
Constructed with OS2 single mode fiber, the MPO-24 trunk cable delivers low insertion loss, high return loss, and reliable long-distance optical transmission. Its 24-fiber configuration provides increased fiber density and efficient space utilization, making it ideal for data center backbone links, optical distribution frames (ODFs), cross-connect systems, equipment rooms, and other high-density structured cabling applications.
The MPO-24 to MPO-24 trunk cable supports customizable configurations including MPO connector gender, APC or UPC polishing, polarity options, cable lengths, and jacket types. Designed for simplified installation, efficient fiber management, and scalable network expansion, it provides a reliable and flexible solution for high-capacity fiber optic networks.
Specifications
End A | MPO | End B | MPO |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 24 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 80/240N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.35dB/km | Attenuation at 1550nm | ≤0.21dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |

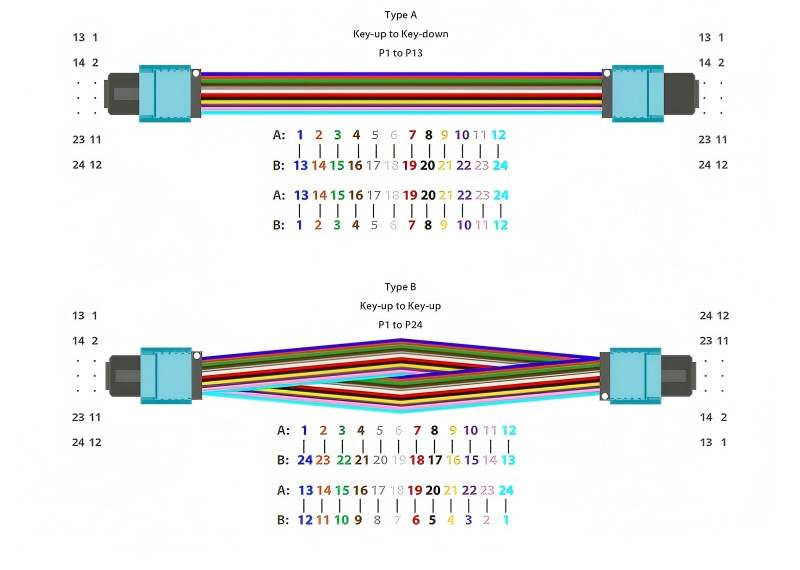

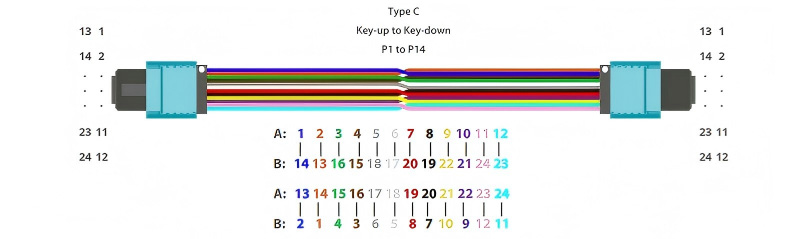

24 Fibers MPO-24 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
