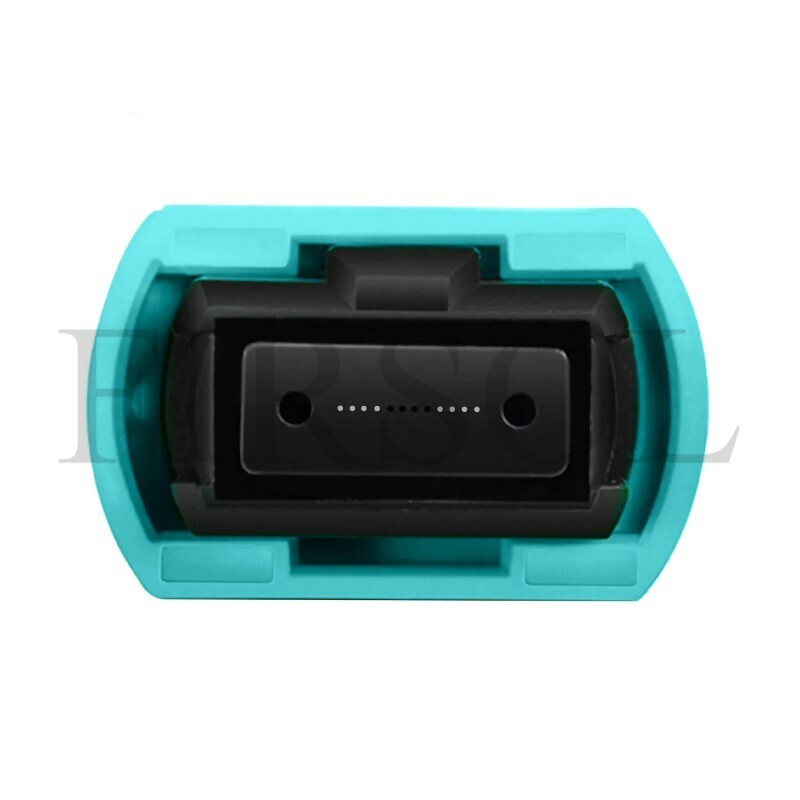

OM4 Multimode 8 Fiber MPO-8 To MPO-8 Trunk Cable
P/N: FIR-OM4-8F-MPO8-TC|SKU: 11974
Total Price
$49.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OM4 Multimode 8 Fiber MPO-8 To MPO-8 Trunk Cable
The OM4 Multimode 8 Fiber MPO-8 to MPO-8 Trunk Cable provides a high-density, plug-and-play connectivity solution for 40G, 100G, and other parallel-optics applications in data centers and structured cabling systems. It features eight laser-optimized OM4 multimode fibers terminated with MPO-8 connectors at both ends, helping reduce installation time, cable congestion, and pathway space requirements. Customizable options include cable length, polarity, connector gender, pulling eyes, and cable jacket type.
Specifications
End A | MPO | End B | MPO |
Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
Fiber Count | 8 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 90/180N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |
8 Fibers MPO-8 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
