OM3 Multimode 12 Fiber MTP®-12 To MTP®-12 Trunk Cable
P/N: FIR-OM3-12F-MTP12-TC|SKU: 11793
Total Price
$68.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OM3 Multimode 12 Fiber MTP®-12 To MTP®-12 Trunk Cable
The OM3 Multimode 12 Fiber MTP®-12 to MTP®-12 Trunk Cable provides a high-density, plug-and-play solution for data centers, telecommunications networks, and structured cabling systems. It features twelve OM3 multimode fibers terminated with MTP®-12 connectors at both ends, helping reduce installation time, simplify cable management, and improve space utilization compared with traditional single-fiber cabling. Designed for reliable high-speed network connections, this trunk cable is available with customizable lengths, polarity methods, connector genders, pulling eyes, and cable jacket options.
Specifications
End A | US Conec MTP® Elite | End B | US Conec MTP® Elite |
Fiber Type | OM3 50/125μm Multimode | Wavelength | 850/1300nm |
Fiber Count | 12 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 90/180N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |

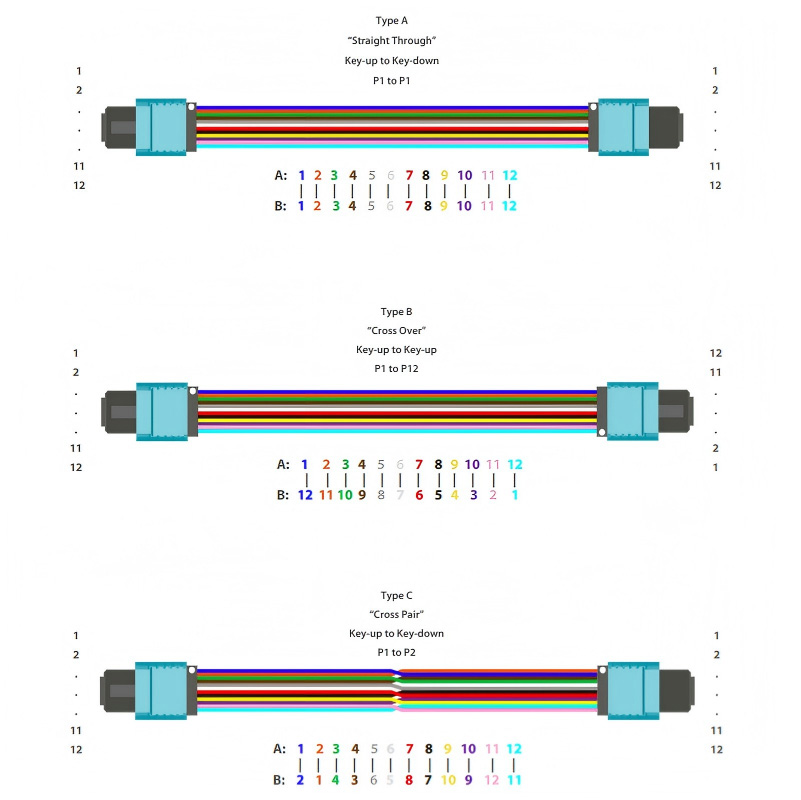

12 Fibers MTP®-12 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
