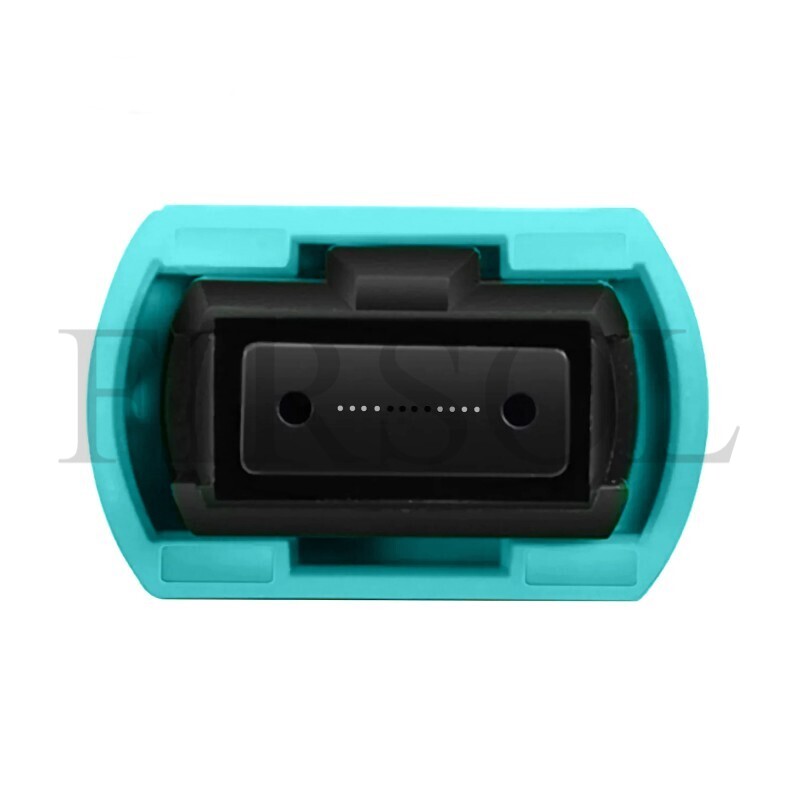

OM3 Multimode 8 Fiber MTP®-8 To MTP®-8 Trunk Cable
P/N: FIR-OM3-8F-MTP8-TC|SKU: 11762
Total Price
$68.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OM3 Multimode 8 Fiber MTP®-8 To MTP®-8 Trunk Cable
The OM3 Multimode 8 Fiber MTP®-8 to MTP®-8 Trunk Cable provides a high-density, plug-and-play fiber connectivity solution for 40G Ethernet, parallel-optics applications, and data center network deployments. It features eight OM3 multimode fibers terminated with genuine US Conec MTP®-8 connectors at both ends, helping reduce installation time and simplify cable management compared with traditional individual fiber cabling. Available with customizable cable lengths, polarity types, connector genders, pulling eyes, and jacket options, this trunk cable is ideal for connecting MTP®-equipped transceivers, patch panels, cassettes, and other high-density fiber systems.
Specifications
End A | US Conec MTP® Elite | End B | US Conec MTP® Elite |
Fiber Type | OM3 50/125μm Multimode | Wavelength | 850/1300nm |
Fiber Count | 8 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 90/180N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |
8 Fibers MTP®-8 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
