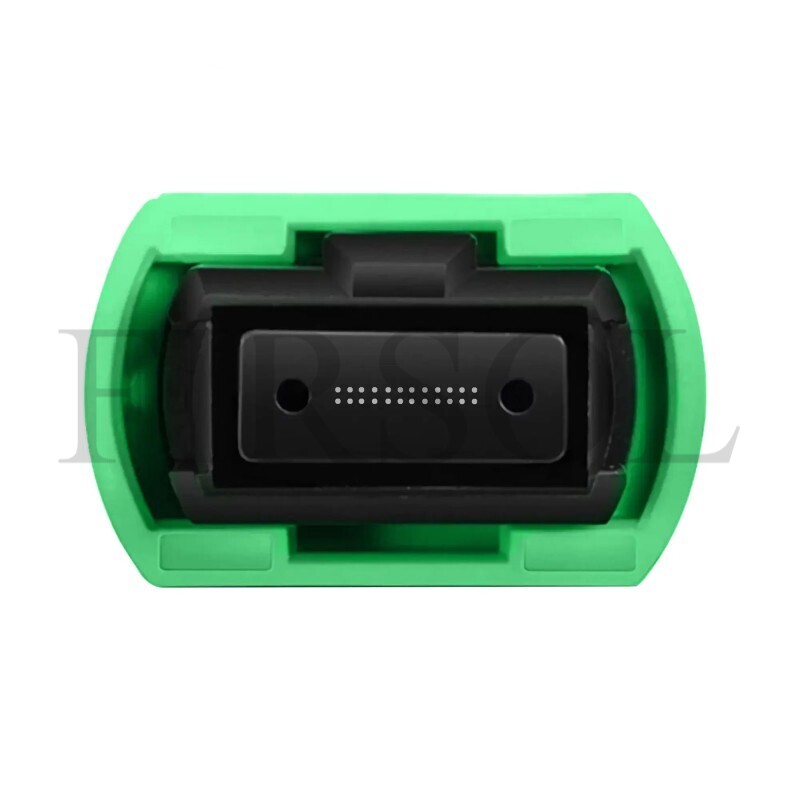

OS2 Single Mode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable
P/N: FIR-OS2-24F-MTP24-TC|SKU: 11607
Total Price
$185.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OS2 Single Mode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable
OS2 Single Mode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable is a high-density pre-terminated fiber optic cabling solution designed for large-scale data center deployments, telecom networks, and advanced optical communication systems. Featuring MTP®-24 connectors on both ends, this trunk cable provides a 24-fiber high-capacity connection that enables efficient backbone cabling and scalable network expansion.
Constructed with OS2 single mode fiber, this MTP®-24 trunk cable delivers low insertion loss, high return loss performance, and reliable long-distance signal transmission. The 24-fiber design maximizes fiber density while reducing cable congestion, making it ideal for high-capacity backbone links, optical distribution frames (ODFs), cross-connect applications, and space-constrained data center environments.
The MTP®-24 to MTP®-24 trunk cable supports customizable configurations, including MTP® connector gender, APC or UPC polishing, polarity options, cable lengths, and jacket types. Engineered for efficient installation and simplified fiber management, it provides a reliable solution for high-density optical networks requiring increased fiber capacity and future scalability.
Specifications
End A | US Conec MTP® Elite | End B | US Conec MTP® Elite |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 24 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 80/240N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.35dB/km | Attenuation at 1550nm | ≤0.21dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |

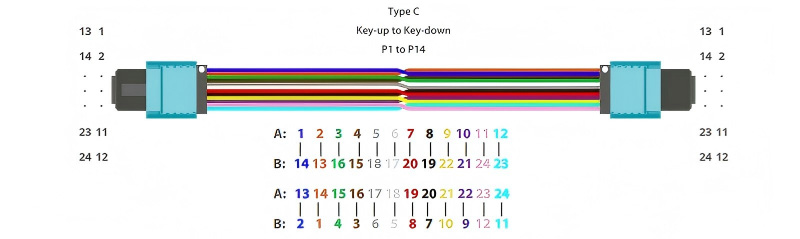

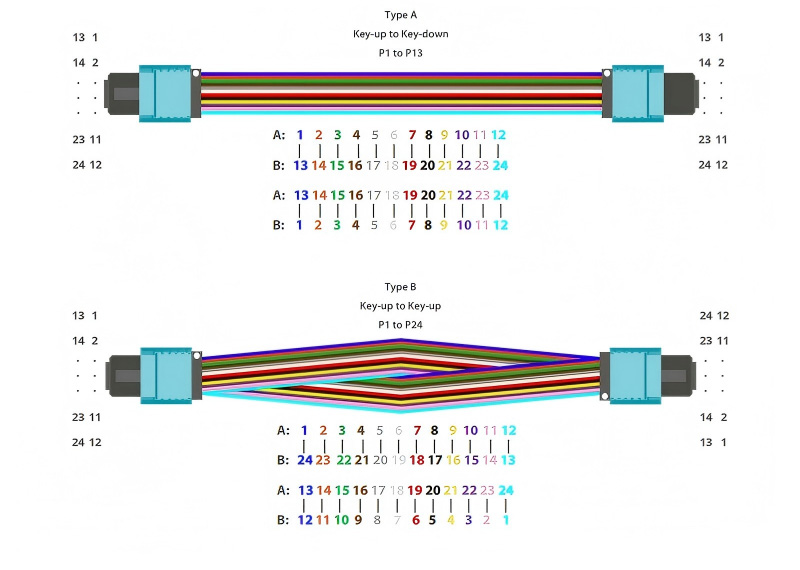

24 Fibers MTP®-24 Trunk Cable Polarity Method

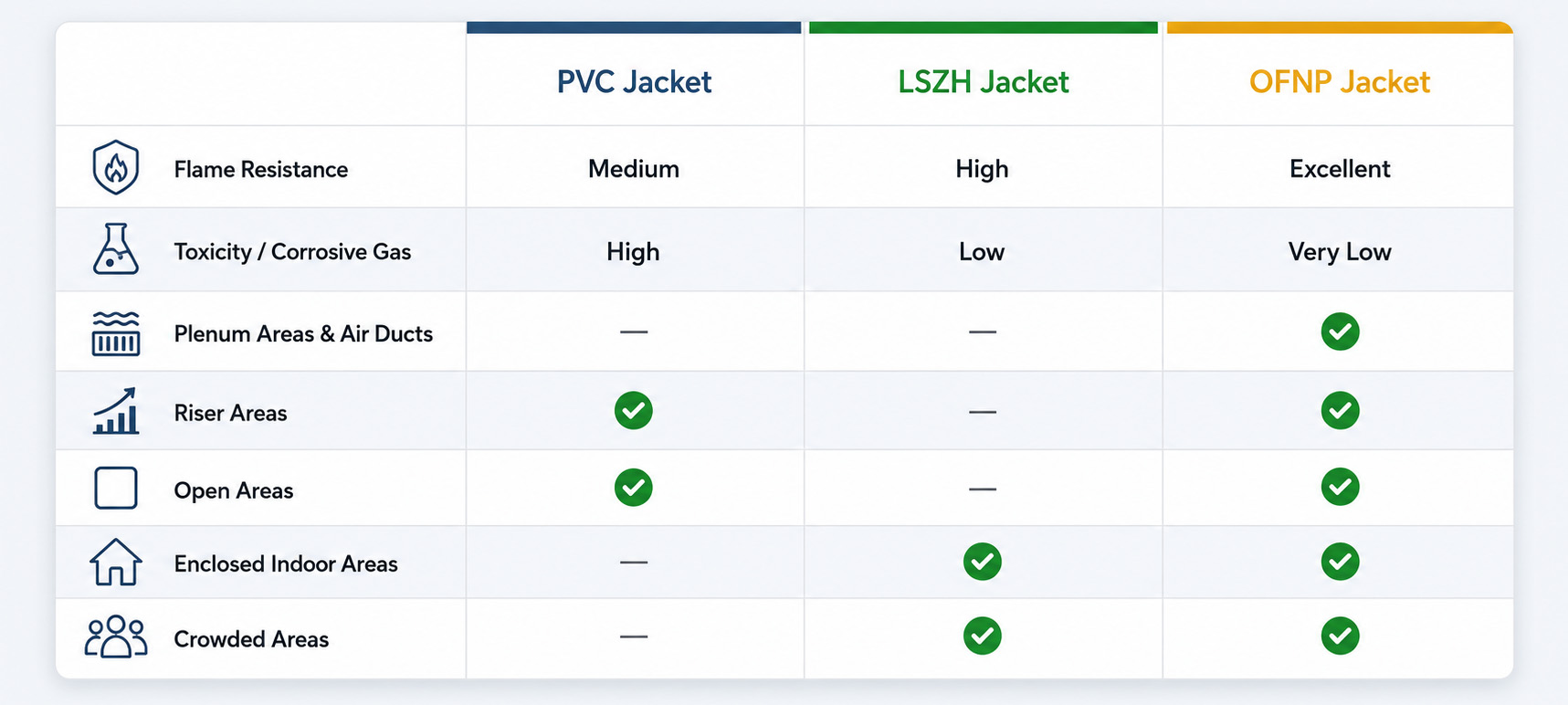

PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
Questions & Answers
No questions yet. Ask the first question about this product.
Customer Reviews
No reviews yet. Be the first to review this product.
You May Also Like

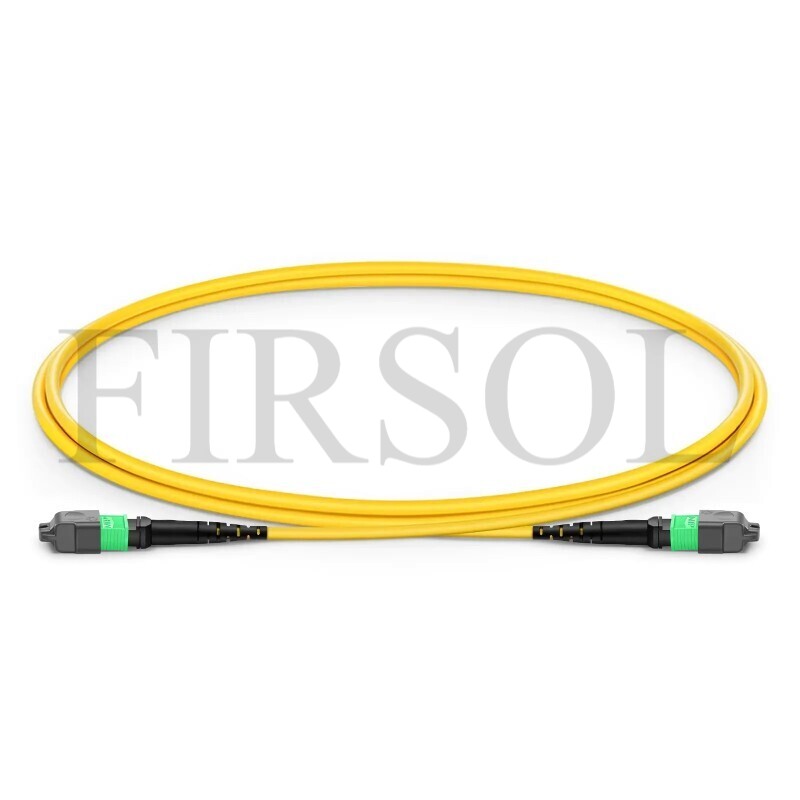

OS2 Single Mode 16 Fiber MTP®-16 To MTP®-16 Trunk Cable
P/N: FIR-OS2-16F-MTP16-TC|SKU: 11576
OS2 Single Mode 12 Fiber MTP®-12 To MTP®-12 Trunk Cable
P/N: FIR-OS2-12F-MTP12-TC|SKU: 11545
OS2 Single Mode 8 Fiber MTP®-8 To MTP®-8 Trunk Cable
P/N: FIR-OS2-8F-MTP8-TC|SKU: 11514
OM3 Multimode 8 Fiber MTP®-8 To MTP®-8 Trunk Cable
P/N: FIR-OM3-8F-MTP8-TC|SKU: 11762

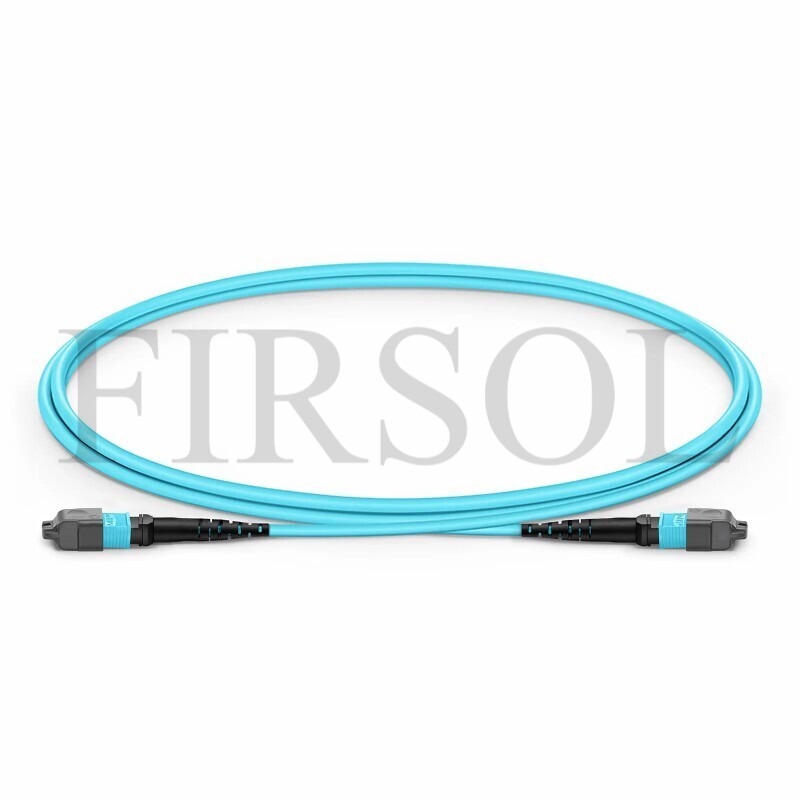

OM3 Multimode 12 Fiber MTP®-12 To MTP®-12 Trunk Cable
P/N: FIR-OM3-12F-MTP12-TC|SKU: 11793
OM3 Multimode 16 Fiber MTP®-16 To MTP®-16 Trunk Cable
P/N: FIR-OM3-16F-MTP16-TC|SKU: 11824
OM3 Multimode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable
P/N: FIR-OM3-24F-MTP24-TC|SKU: 11855

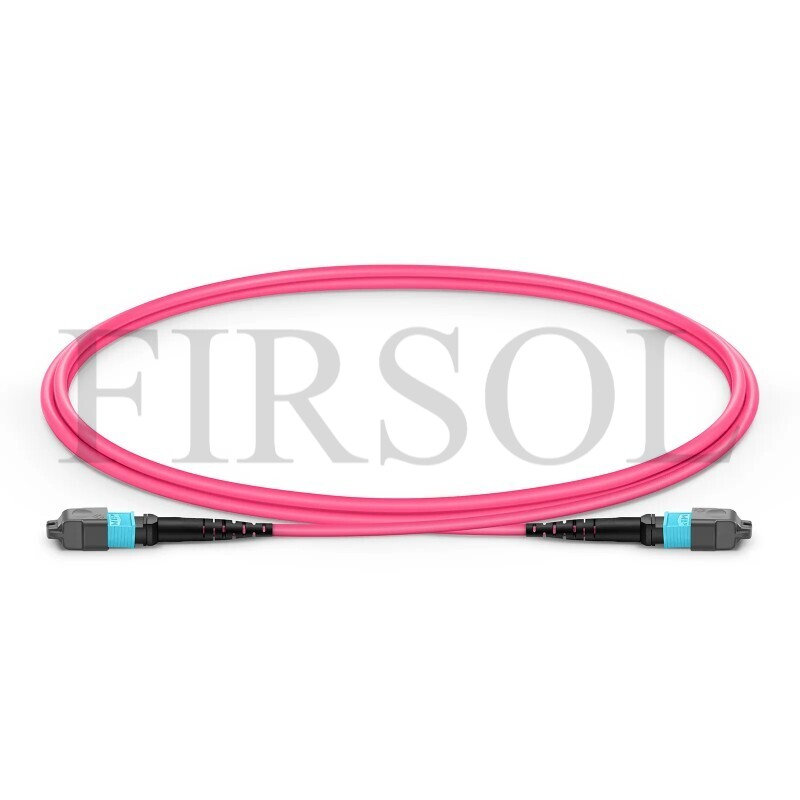

OM4 Multimode 8 Fiber MTP®-8 To MTP®-8 Trunk Cable
