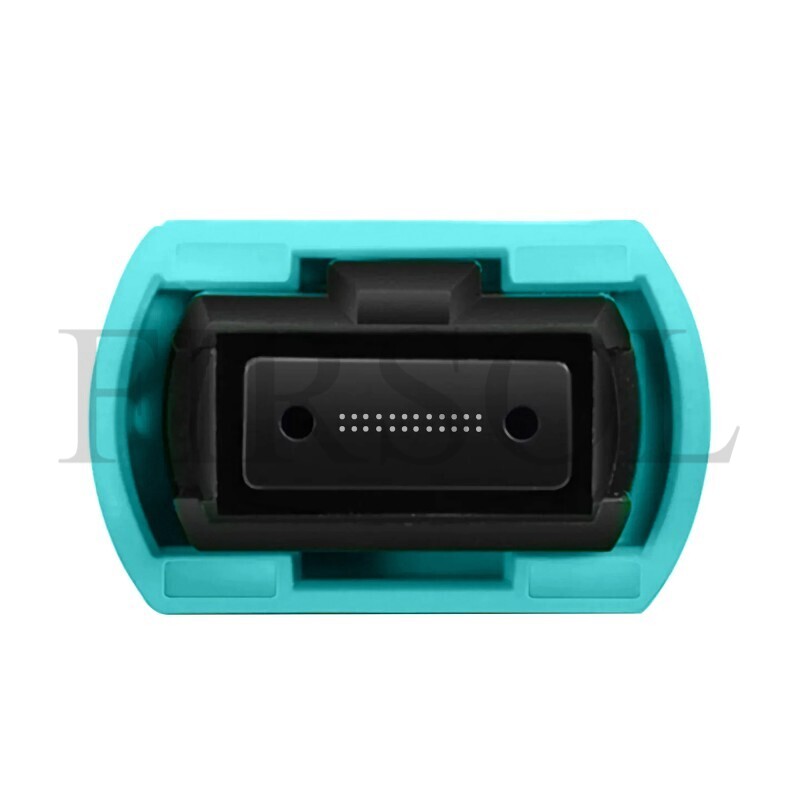

OM4 Multimode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable
P/N: FIR-OM4-24F-MTP24-TC|SKU: 11919
Total Price
$165.00 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
OM4 Multimode 24 Fiber MTP®-24 To MTP®-24 Trunk Cable
The OM4 Multimode 24 Fiber MTP®-24 to MTP®-24 Trunk Cable provides a high-density, plug-and-play fiber connectivity solution for data centers, telecommunications networks, and structured cabling systems. It features twenty-four laser-optimized OM4 multimode fibers terminated with MTP®-24 connectors at both ends, enabling multiple optical channels to be deployed through a single compact cable assembly. This design helps reduce installation time, cable congestion, and pathway space requirements. Customizable options include cable length, polarity, connector gender, pulling eyes, and cable jacket type.
Specifications
End A | US Conec MTP® Elite | End B | US Conec MTP® Elite |
Fiber Type | OM4 50/125μm Multimode | Wavelength | 850/1300nm |
Fiber Count | 24 Fibers | Cable Diameter | 3.0mm |
Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
Connector Durability | 500 Times | Tensile Strength | 90/180N (Long/Short Term) |
Insertion Loss | ≤0.35dB | Return Loss | ≥20dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -20°C to +70°C |
24 Fibers MTP®-24 Trunk Cable Polarity Method
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
