LC/UPC OS2 Single Mode Simplex Fiber Pigtail
P/N: FIR-LCU-OS2S-FP|SKU: 12099
Total Price
$1.90 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

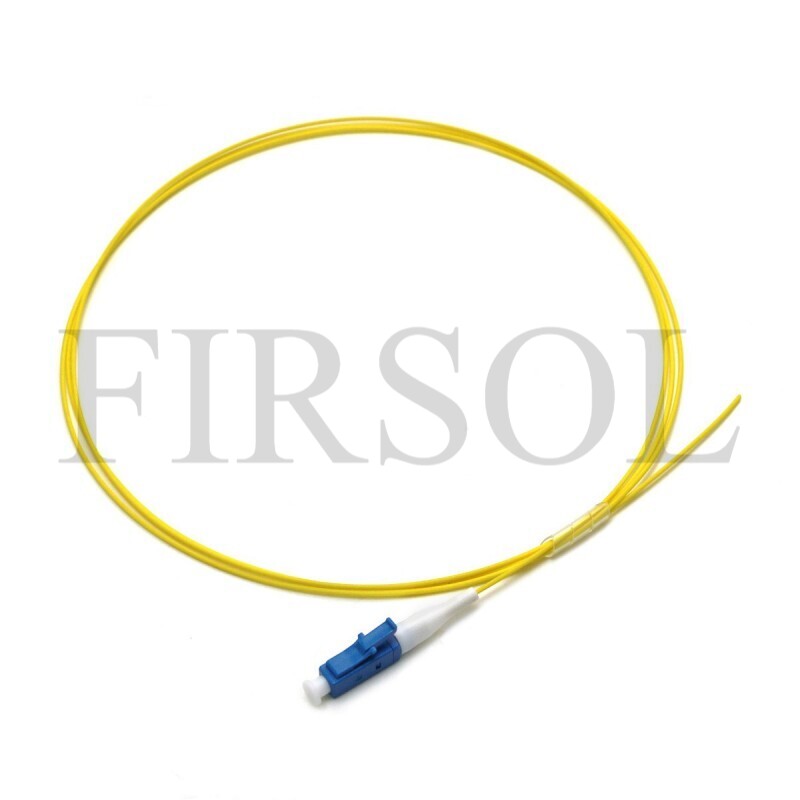

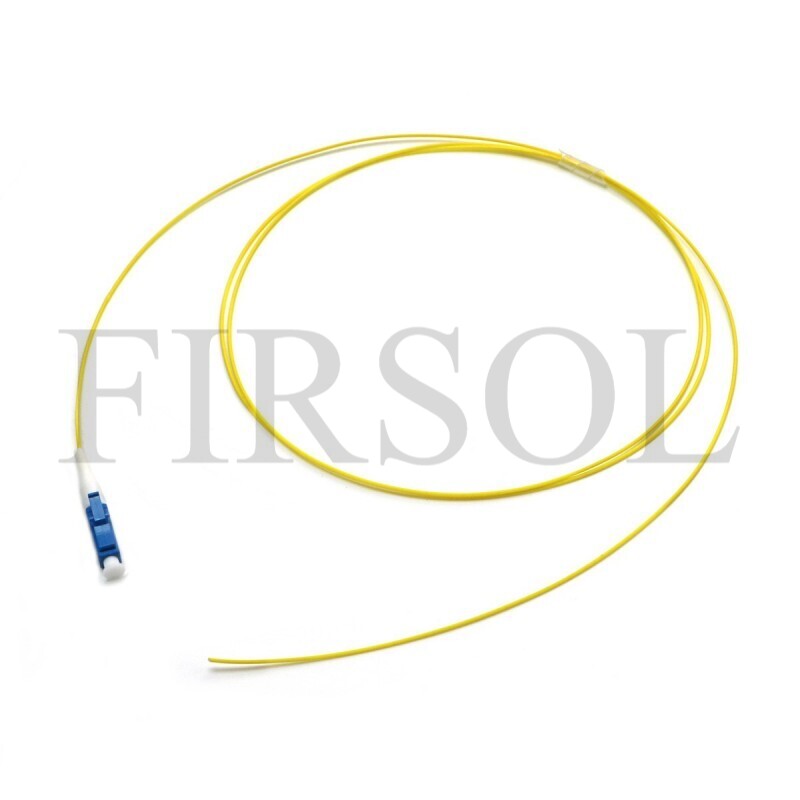

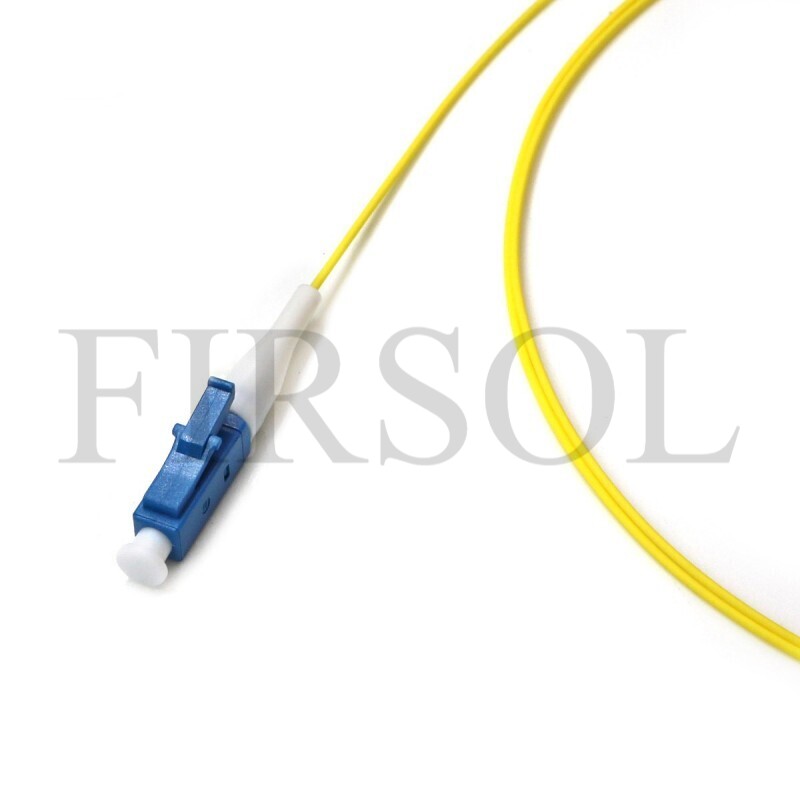

LC/UPC OS2 Single Mode Simplex Fiber Pigtail
The LC/UPC OS2 Single Mode Simplex Fiber Pigtail is designed for reliable optical termination and splicing in single mode fiber networks. It features a factory-terminated LC/UPC connector on one end and an unterminated fiber end on the other, making it suitable for fusion splicing inside fiber optic distribution boxes, patch panels, ODFs, and telecommunications equipment.
Built with OS2 single mode fiber, this LC fiber pigtail provides low insertion loss, high return loss, and stable optical performance for long-distance and high-speed transmission applications. The compact LC connector is well suited for high-density fiber installations, while the UPC polished end face helps ensure dependable optical connections.
Various fiber lengths, cable diameters, and fiber types can be customized to meet different network installation and equipment requirements.
Specifications
End A | LC/UPC | End B | Unterminated |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 1 Fiber | Cable Diameter | 0.9/2.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 1000 Times | Interchangeability | ≤0.2dB |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm | ≤0.22dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
