SC/UPC OS2 Single Mode Simplex Fiber Pigtail
P/N: FIR-SCU-OS2S-FP|SKU: 12115
Total Price
$1.90 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

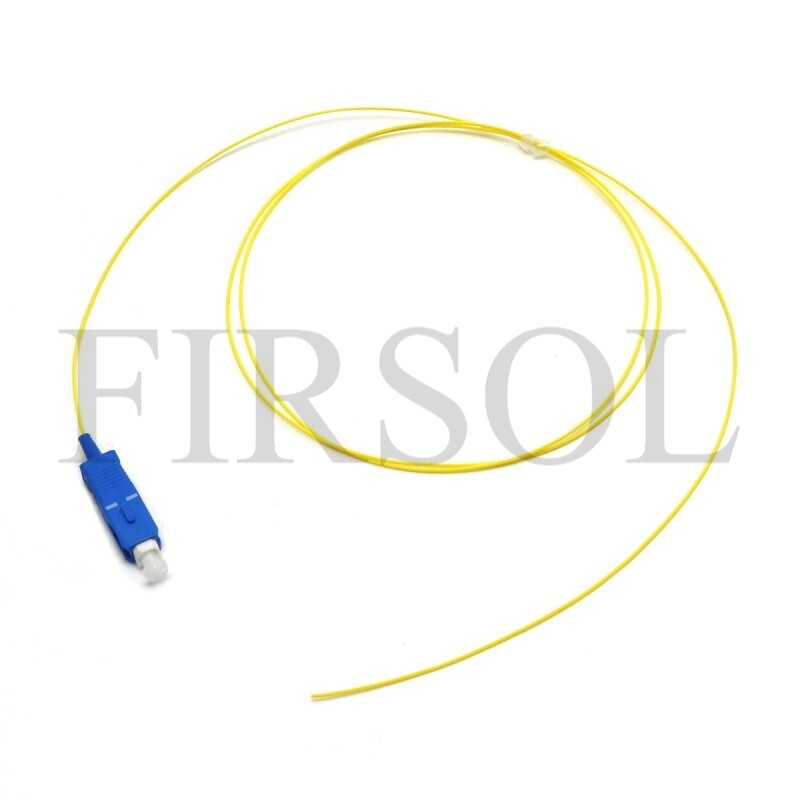

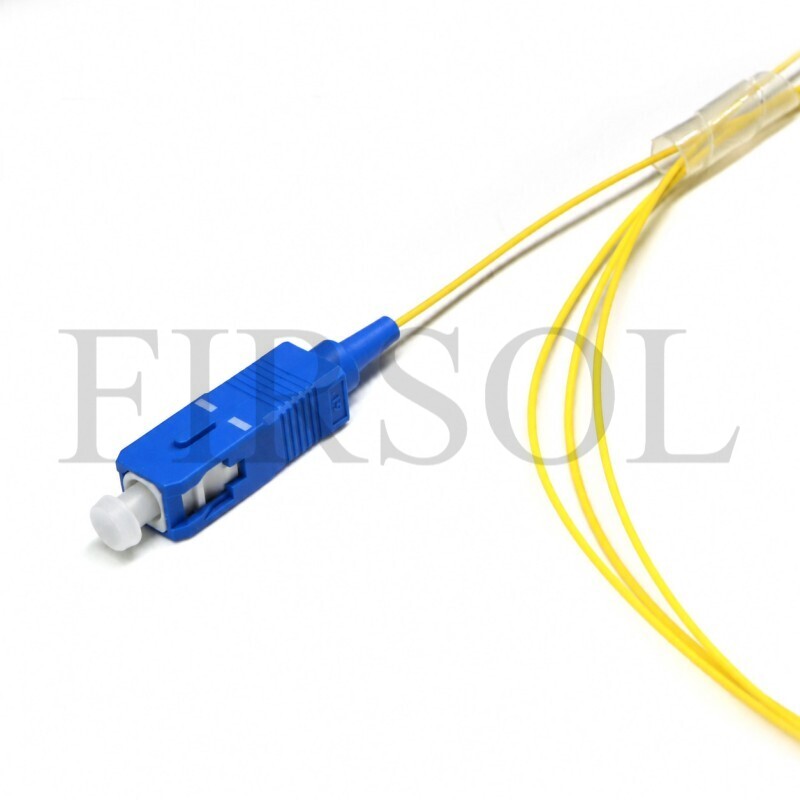

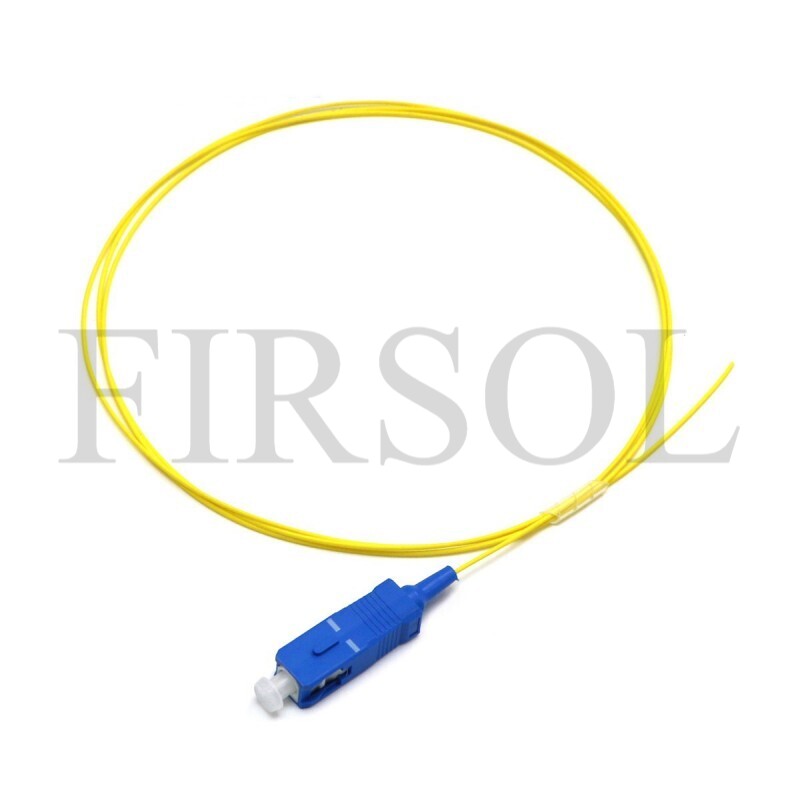

SC/UPC OS2 Single Mode Simplex Fiber Pigtail
The SC/UPC OS2 Single Mode Simplex Fiber Pigtail is designed for reliable fiber termination and fusion splicing in single mode optical networks. It features a factory-terminated SC/UPC connector on one end and an unterminated OS2 fiber end on the other, providing a convenient solution for splicing inside fiber distribution boxes, patch panels, ODFs, and telecommunications equipment.
Built with OS2 single mode fiber, this SC fiber pigtail delivers low insertion loss, high return loss, and stable optical transmission performance. The SC connector features a durable push-pull coupling mechanism for secure and repeatable connections, making it suitable for telecom networks, FTTH systems, data centers, and other fiber optic installations.
Various fiber lengths, cable diameters, and fiber configurations can be customized to meet different installation and network requirements.
Specifications
End A | SC/UPC | End B | Unterminated |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 1 Fiber | Cable Diameter | 0.9/2.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 1000 Times | Interchangeability | ≤0.2dB |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm | ≤0.22dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
