ST/UPC OS2 Single Mode Simplex Fiber Pigtail
P/N: FIR-STU-OS2S-FP|SKU: 12149
Total Price
$1.90 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
ST/UPC OS2 Single Mode Simplex Fiber Pigtail
The ST/UPC OS2 Single Mode Simplex Fiber Pigtail is designed for reliable fiber termination and fusion splicing in single mode optical networks. It features a factory-terminated ST/UPC connector on one end and an unterminated OS2 fiber end on the other, making it suitable for splicing into fiber distribution boxes, patch panels, ODFs, telecommunications equipment, and optical network systems.
Built with OS2 single mode fiber, this ST fiber pigtail provides low insertion loss, high return loss, and stable optical transmission performance. The ST connector features a bayonet-style coupling mechanism for quick and secure connection, making it suitable for applications that require dependable mechanical engagement and convenient installation.
Various fiber lengths, cable diameters, and fiber configurations can be customized to meet different installation and network requirements.
Specifications
End A | ST/UPC | End B | Unterminated |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 1 Fiber | Cable Diameter | 0.9/2.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 1000 Times | Interchangeability | ≤0.2dB |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm | ≤0.22dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
PVC vs. LSZH vs. OFNP Fiber Cable Jacket Comparison
Questions & Answers
No questions yet. Ask the first question about this product.
Customer Reviews
No reviews yet. Be the first to review this product.
You May Also Like

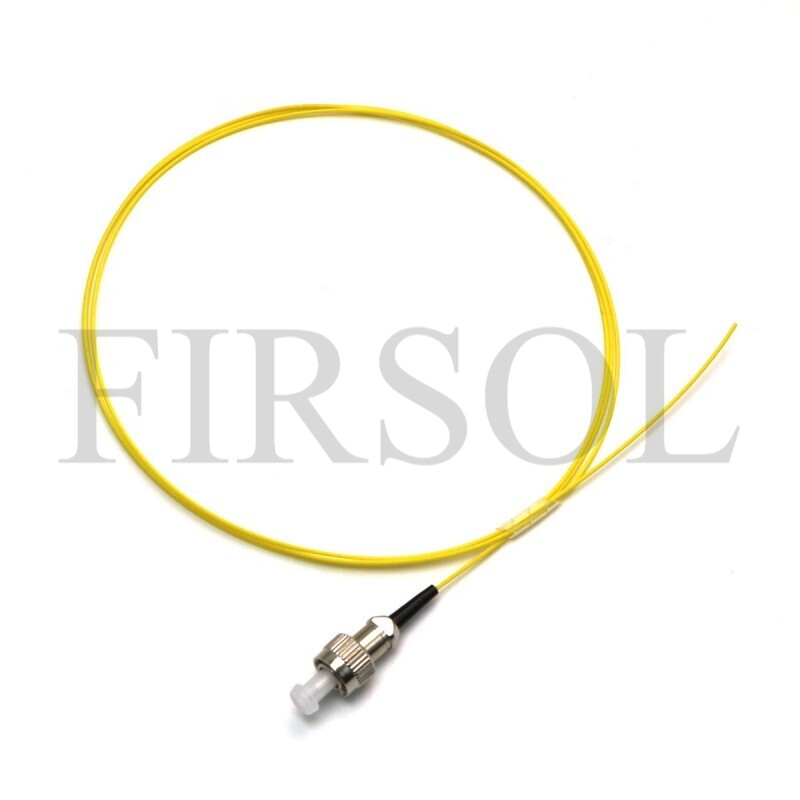

FC/UPC OS2 Single Mode Simplex Fiber Pigtail
