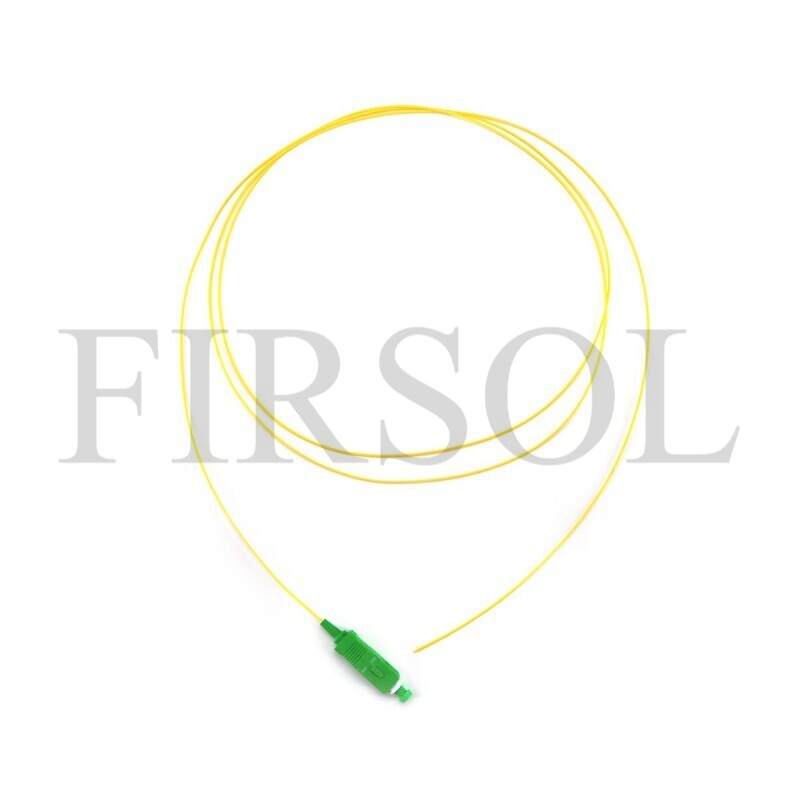

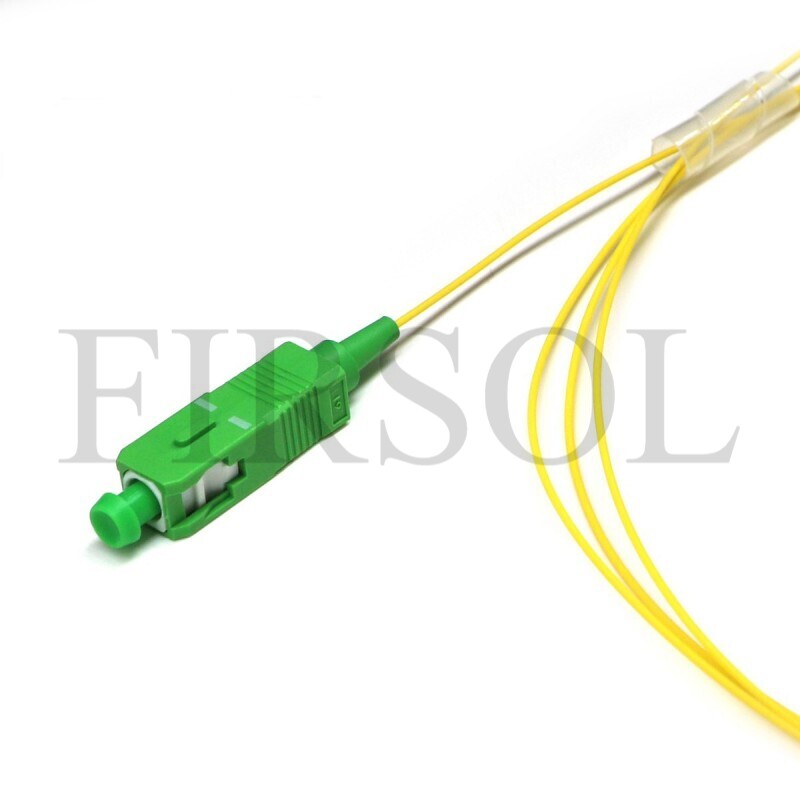

SC/APC OS2 Single Mode Simplex Fiber Pigtail
P/N: FIR-SCA-OS2S-FP|SKU: 12123
Total Price
$1.90 / unit
Production time varies based on product type, quantity, and customization level.
Below is a general estimate for most orders. For exact delivery time, please contact [email protected].
Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment
SC/APC OS2 Single Mode Simplex Fiber Pigtail
The SC/APC OS2 Single Mode Simplex Fiber Pigtail is designed for reliable fiber termination and fusion splicing in single mode optical networks. It features a factory-terminated SC/APC connector on one end and an unterminated OS2 fiber end on the other, making it suitable for splicing into fiber distribution boxes, patch panels, ODFs, and telecommunications equipment.
Built with OS2 single mode fiber and an APC polished connector, this fiber pigtail provides low insertion loss, high return loss, and reduced back reflection for stable optical transmission. The SC connector features a robust push-pull coupling mechanism, while the angled physical contact end face makes it particularly suitable for FTTH, PON, telecom, and other applications where low optical reflectance is important.
Various fiber lengths, cable diameters, and fiber configurations can be customized to meet different installation and network requirements.
Specifications
End A | SC/APC | End B | Unterminated |
Fiber Type | OS2 9/125μm Single Mode | Wavelength | 1310/1550nm |
Fiber Count | 1 Fiber | Cable Diameter | 0.9/2.0mm |
Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
Connector Durability | 1000 Times | Interchangeability | ≤0.2dB |
Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm | ≤0.22dB/km |
Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
